Installing Mounting Saddle

Fit mounting saddle in the vehicle.
Tighten fastening screws -1- at the bottom. Tightening Torque 23 Nm (17 ft. lb.) +/-3 Nm (+/-2 ft. lb.)

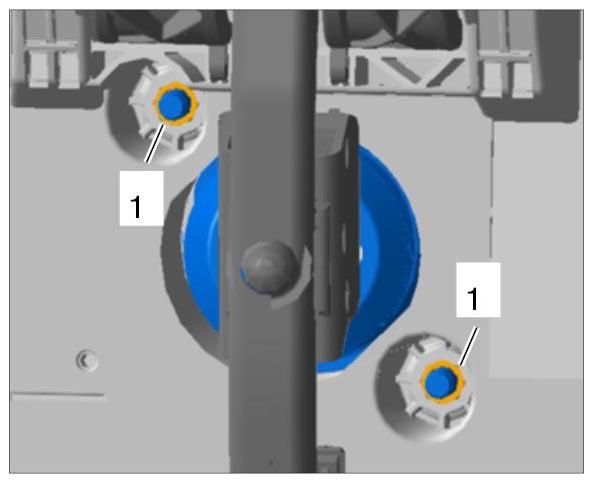

Fig 1: Identifying Screw For Mounting Saddle At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

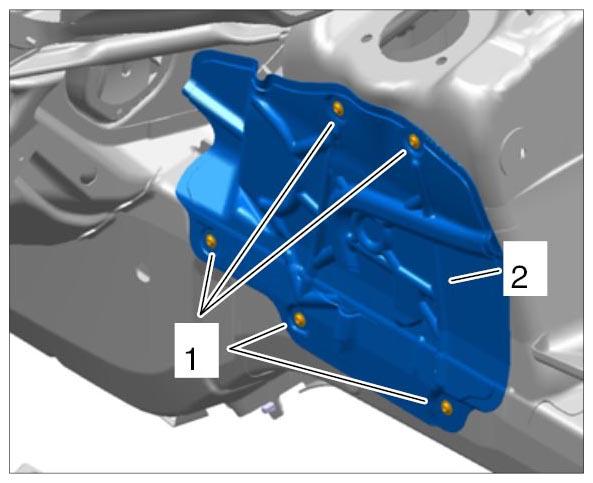

Tighten fastening screws -1- for the heat shield -2- at the left of the longitudinal member. Tightening Torque 2 Nm (1.5 ft. lb.)

Fig 2: Identifying Heat Shield, Left
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

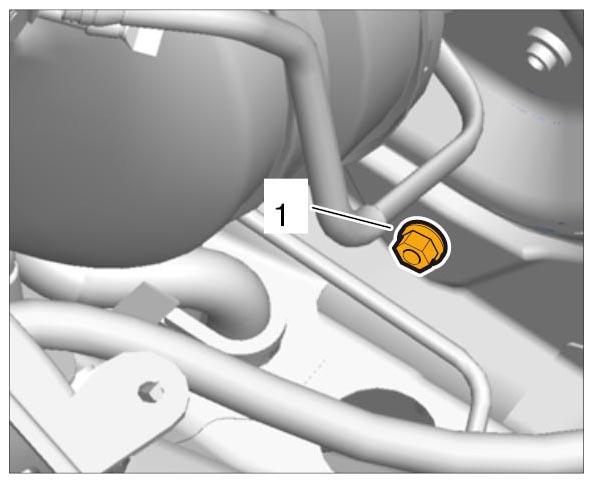

Tighten fastening screw -1- for the mounting saddle at the left under the brake booster. Tightening Torque 23 Nm (17 ft. lb.) +/-3 Nm (+/-2 ft. lb.)

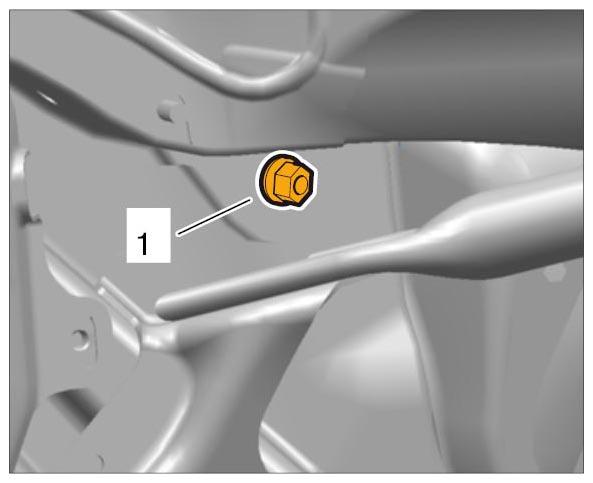

Fig 3: Identifying Mounting Saddle Screw In Plenum Panel At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

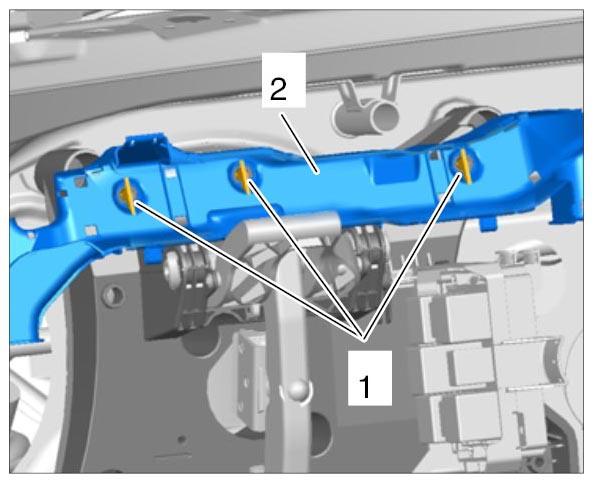

Tighten the top fastening screws -1- for the mounting saddle in the plenum panel. Tightening Torque 23 Nm (17 ft. lb.) +/-3 Nm (+/-2 ft. lb.)

Fig 4: Identifying Mounting Saddle Screws At Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

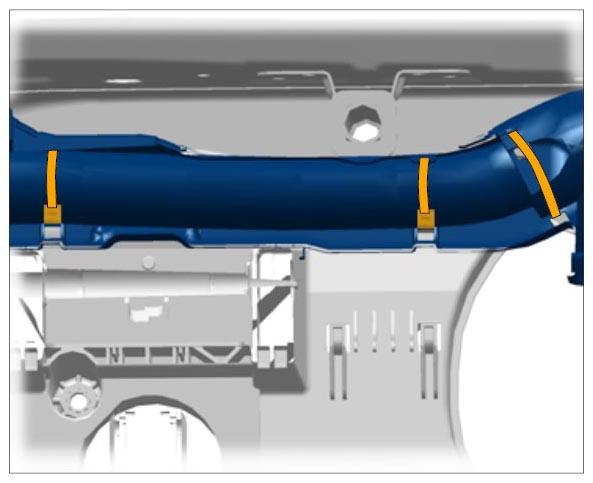

Pre-fit tie-wraps -1- in the cable duct -2- .

Fig 5: Identifying Pre-Fitting Tie-Wraps In Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

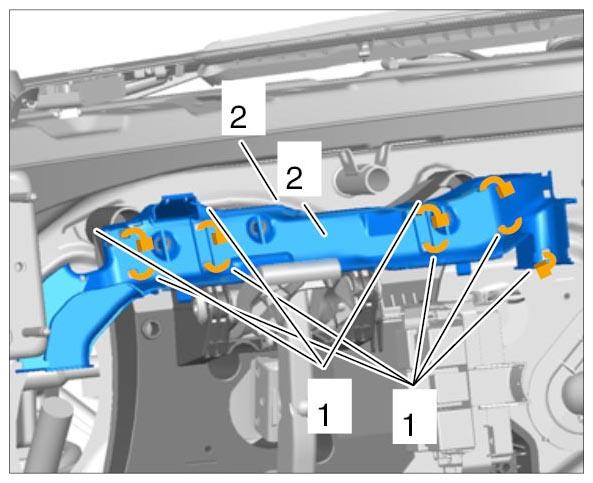

Clip in fixing clips -1- from the cable duct -2- at the mounting saddle.

Fig 6: Identifying Cable Duct Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

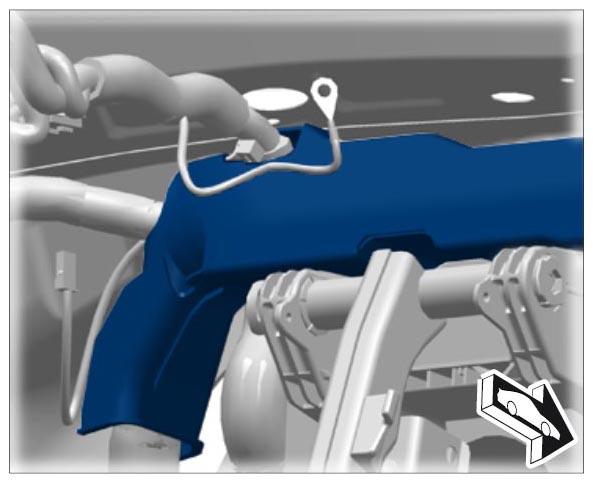

Secure main wire harness in the cable duct and clip in cover.

Fig 7: Identifying Main Wire Harness In Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure main wire harness on the cable duct.

Fig 8: Identifying Main Wire Harness On Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

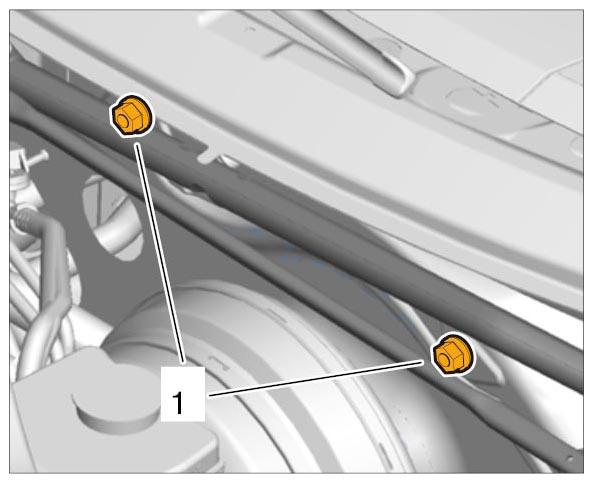

Tighten the fastening nuts -1- for the brake booster under the dashboard. Tightening Torque 26 Nm (19 ft. lb.) +/-3 Nm (+/-2 ft. lb.)

Fig 9: Identifying Brake Booster Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

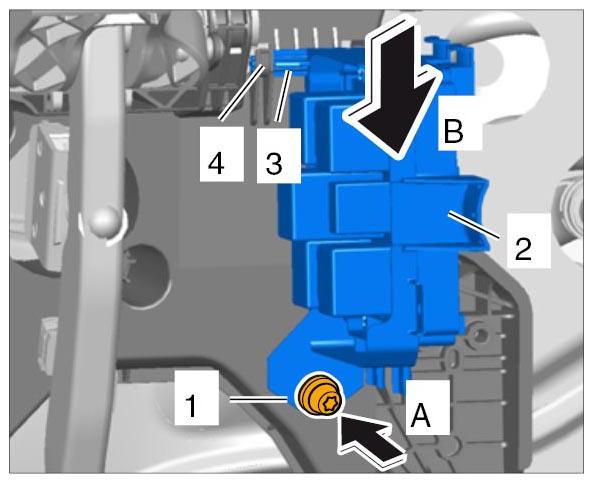

Fit the relay carrier.

Fig 10: Fitting Relay Carrier At Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 11.1. Insert the guide -3- for the relay carrier at the right next to the brake pedal from above -B- and into the holder -4- .
2. 11.2. Press the relay carrier -2- down into the guide -A- .
3. 11.3. Fit fastening screw -1- .
