Removing Positive Crankcase Ventilation Valve

  1. Remove positive crankcase ventilation valve -1-  .
    1. Unclip line -2-  from positive crankcase ventilation valve.
    2. Unscrew screw on positive crankcase ventilation valve.
    3. Pull positive crankcase ventilation valve -1-  off the cylinder head cover.

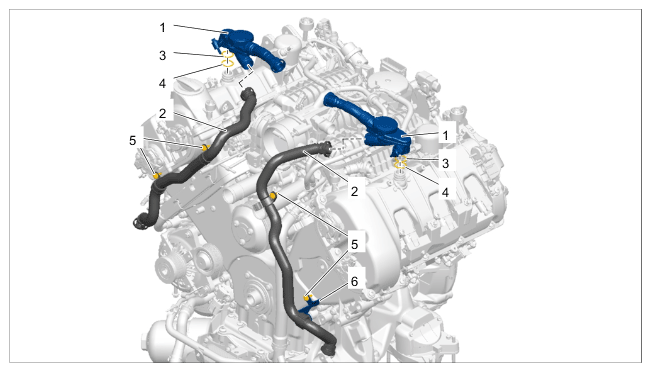

    G14735533Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive crankcase ventilation
