Engine Carrier

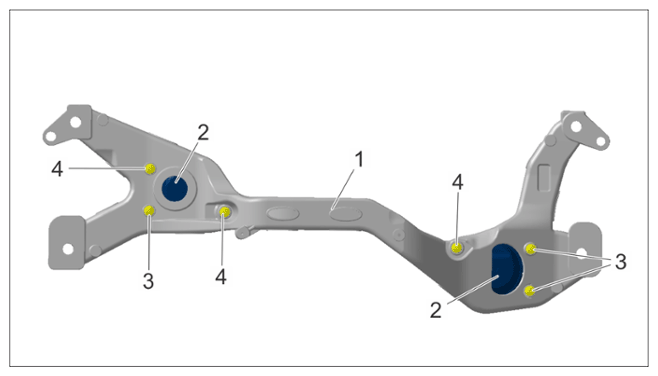

Fig 1: Engine Carrier Components Location V6 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine carrier - V6 biturbo

1. Engine carrier
2. Engine mount
3. Screw, M8 x 65 > Tightening torque 30 Nm (22 ftlb.)  ↓
4. Screw, M8 x 85 > Tightening torque 30 Nm (22 ftlb.)  ↓

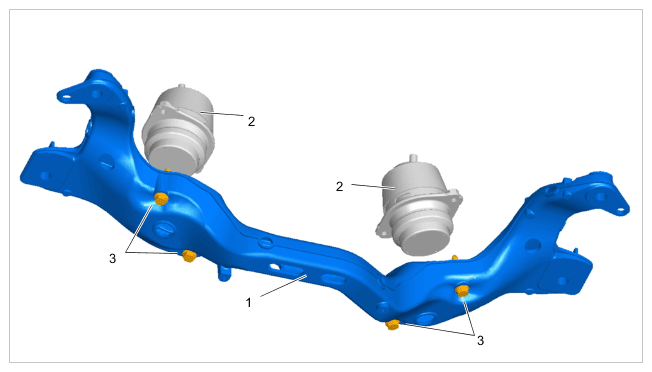

Fig 1: V8 Biturbo Engine Carrier Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V8 biturbo engine carrier

1. Engine carrier
2. Engine mount
3. Screws > Tightening torque 60 Nm +/- 8 Nm  ↓
