Removing Engine Carrier

Information

The pictures and graphics shown may differ from the original depending on engine variants, additional equipment and/or country specifications.

However, the technical accuracy of the specification s is guaranteed.

Information

• This task can only be performed if the engine has been removed or suspended on the body.

1. Unscrew screws -3-  on the left and right engine mount from below.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

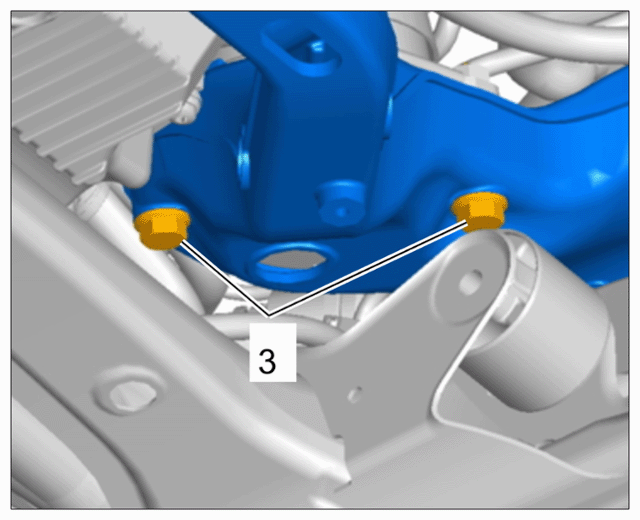

   Engine mount screws (figure shows V8 Biturbo)

2. Remove engine carrier by pulling it downwards.
