Removing Engine From Transmission

Information

• When removing the engine, ensure that the torque converter in the automatic transmission does not slip out of the transmission.
• Keep the torque converter pressed in position using a screwdriver when removing the engine.

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

The pictures shown in this document may differ from the original.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

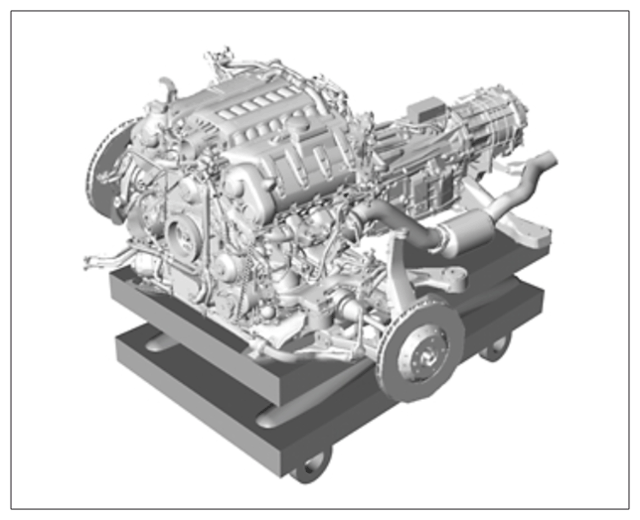

Engine/transmission assembly

1. Remove catalytic converter.

   > WM 267319 REMOVING AND INSTALLING (MAIN) CATALYTIC CONVERTER (CAYENNE S, CAYENNE TURBO, CAYENNE GTS & CAYENNE TURBO S)

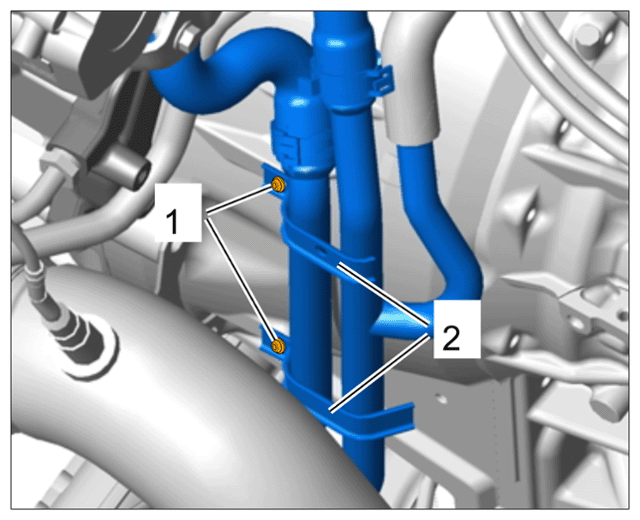

2. Unscrew and remove fastening screws -1-  for the coolant line holder -2-  and bend holder to one side.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for coolant lines

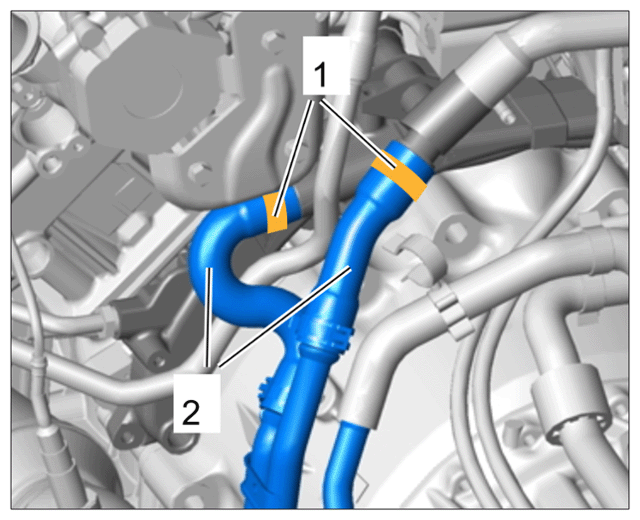

3. Loosen clamps -1-  and disconnect coolant hoses -2-  on the left of the transmission.
   1. Collect emerging coolant.
   2. Close off openings using suitable stoppers.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Coolant hoses on left

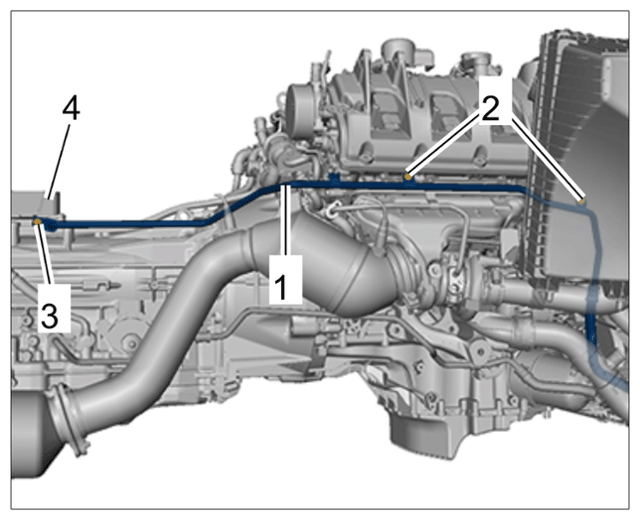

4. Remove ATF line -1-  at the top.
   1. Unscrew screws -2-  on the cylinder head.
   2. Unscrew screw -3-  on the oil cooler -4-  .
   3. Collect emerging ATF.
   4. Close off openings using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing ATF line

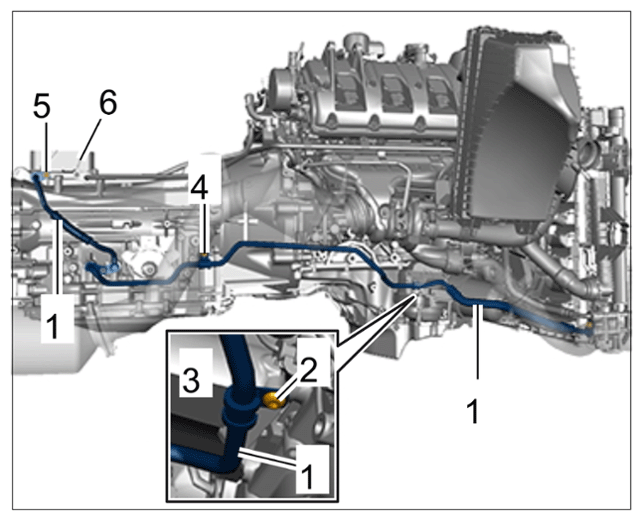

5. Remove ATF line -1-  at the bottom.
   1. Unscrew screw -2-  on the bracket -3-  for the right engine mount.
   2. Unscrew screw -4-  .
   3. Unscrew screw -5-  on the oil cooler -6-  and disconnect ATF line
   4. Guide out ATF line.
   5. Collect emerging ATF.
   6. Close off openings using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw securing ATF line holder to bracket

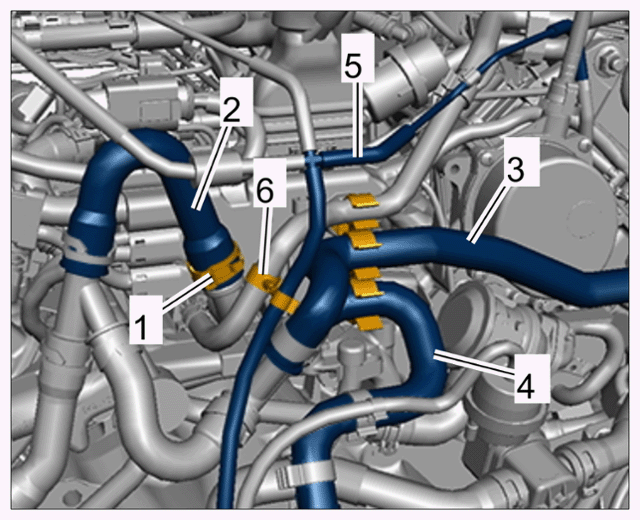

6. Disconnect coolant hoses.
   1. Loosen clamp -1-  and pull off coolant line -2-  .
   2. Collect emerging coolant.
   3. Close off openings using suitable stoppers.
   4. Disconnect coolant hoses -3-  and -4-  from the holder.
   5. Disconnect vacuum line -5-  and release it from the holder -6-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Coolant line on transmission

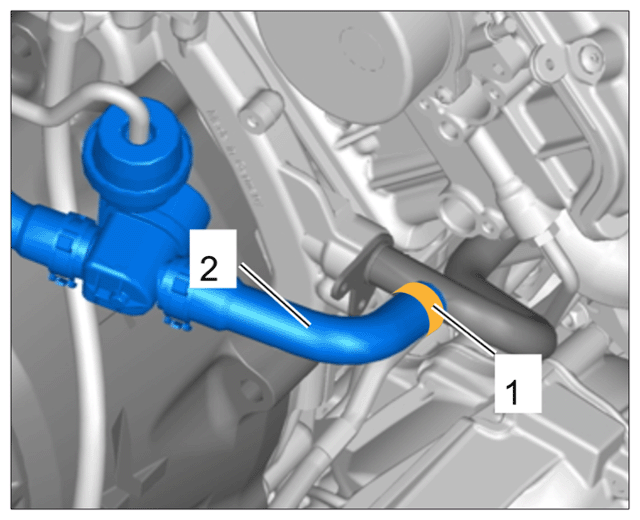

7. Loosen clamp -1-  for the coolant hose -2-  to the ATF heat exchanger on the right and pull the hose down off the connection piece.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right coolant line

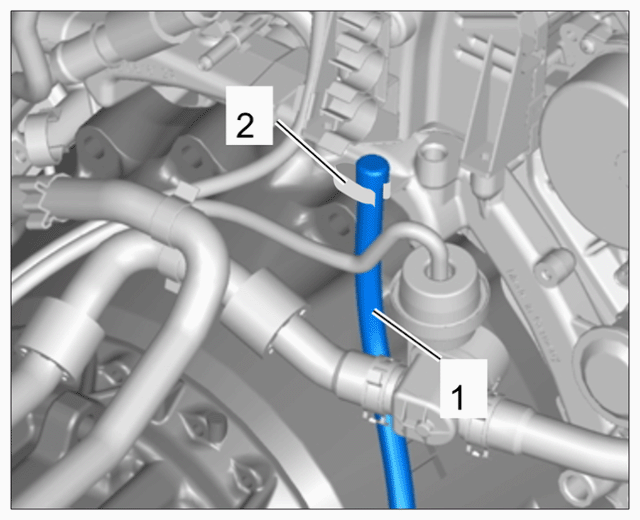

8. Unclip the hose -1-  for the transmission vent from the holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Transmission vent hose

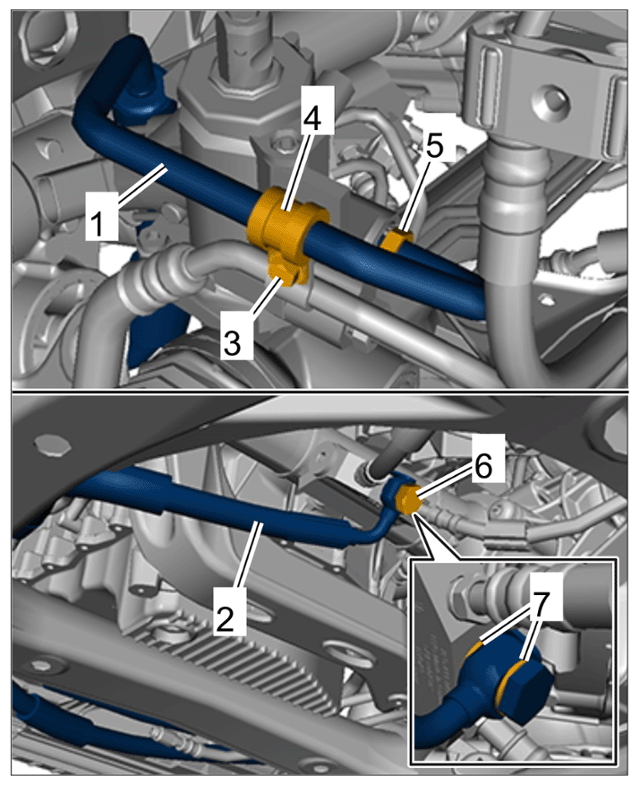

9. Loosen hydraulic lines -1-  and -2-  at the steering gear.
   1. Unscrew screw -3-  and loosen holding clamp -4-  .
   2. Unscrew screw -5-  and disconnect line -1-  from the steering gear.
   3. Loosen screw -6-  , disconnect line -2-  from the steering gear and replace seals -7-  .
   4. Collect emerging hydraulic oil.
   5. Close off openings using suitable stoppers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hydraulic lines on steering gear

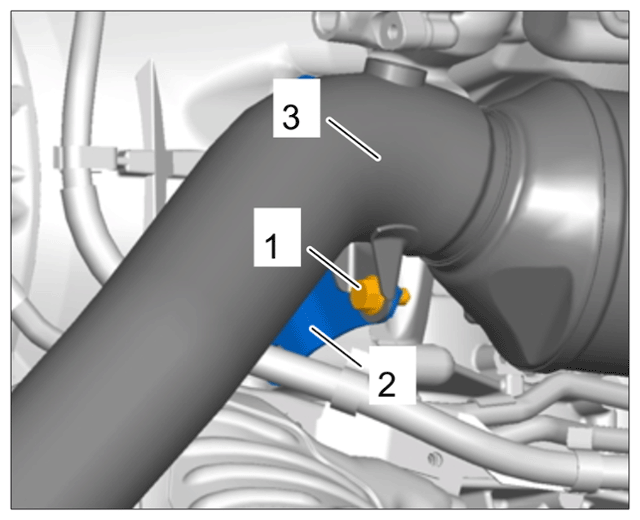

10. Loosen fastening screws -1-  for the holders -2-  of the left and right primary catalytic converters -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for primary catalytic converter

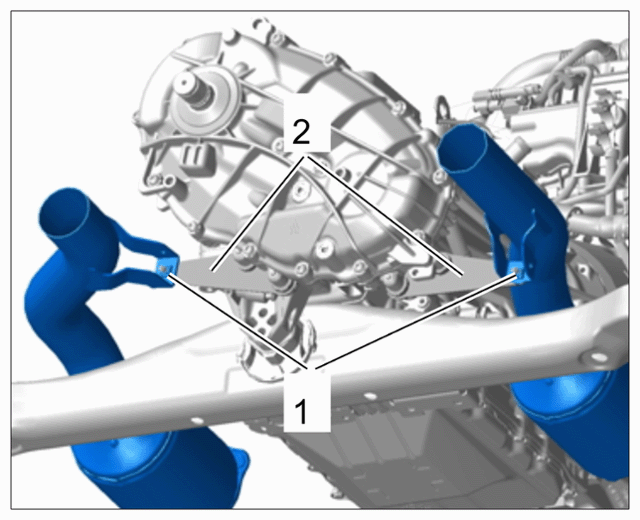

11. Loosen fastening screws -1-  on the left and right for the rear holders -2-  for the catalytic converters on the transmission.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for catalytic converters

12. Remove the catalytic converters and set them aside.

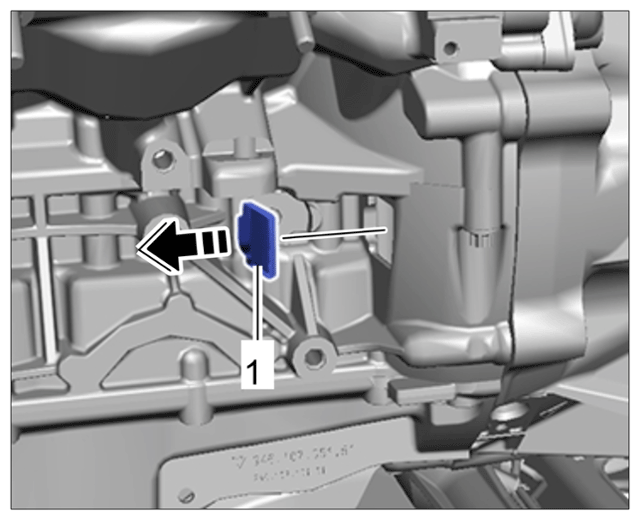

13. Remove stopper -1-  used to seal the converter assembly opening.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stopper for assembly opening

14. Remove converter screws. To do this, read and follow the next steps.

    > WM 325019 REMOVING AND INSTALLING TORQUE CONVERTER (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE (3.0))

15. Turn crankshaft clockwise using special tool > 9714 - Socket wrench insert  .

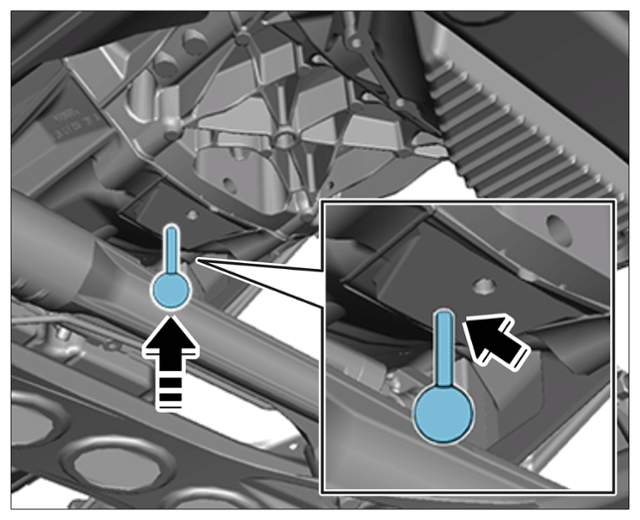

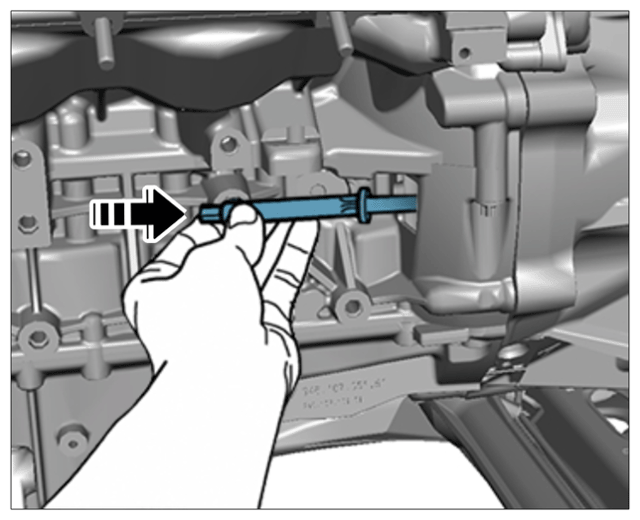

16. Insert special tool > 9595 - Dowel pins  into the front bore on the converter bell housing -arrow-  and hold upwards with slight pressure until it engages when the crankshaft is turned.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locating pin 95950

17. Position special tool > 9688 - Insert bit  on the converter screw through the opening in the engine block and connect bit snap-on head and special tool > 9687 - Insert  one after the other.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Opening for converter screws

18. Remove special tool > 9595 - Dowel pins  before loosening the converter screws.
19. Loosen and unscrew converter screw.
20. Complete the steps described above for the other five screws.

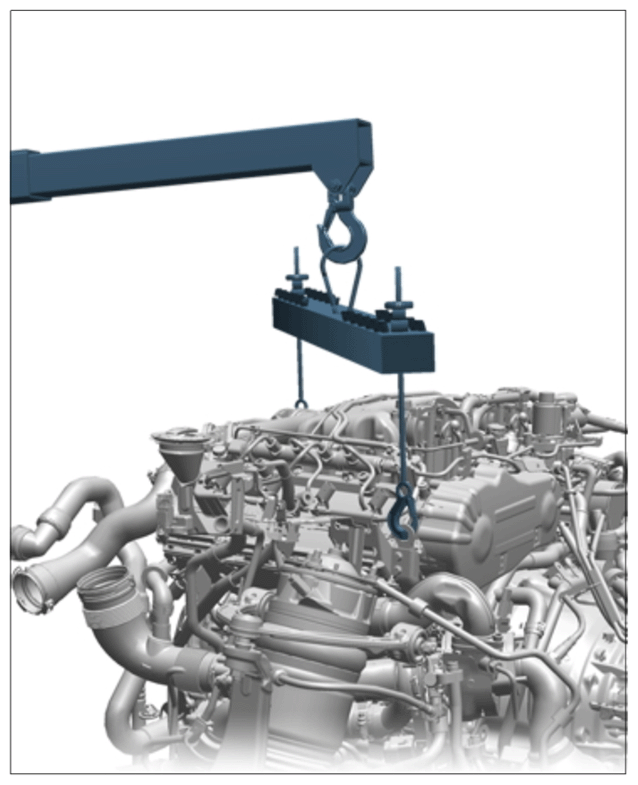

21. Secure engine to the lifting tackle and to the workshop crane >.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing engine on workshop crane (similar illustration)

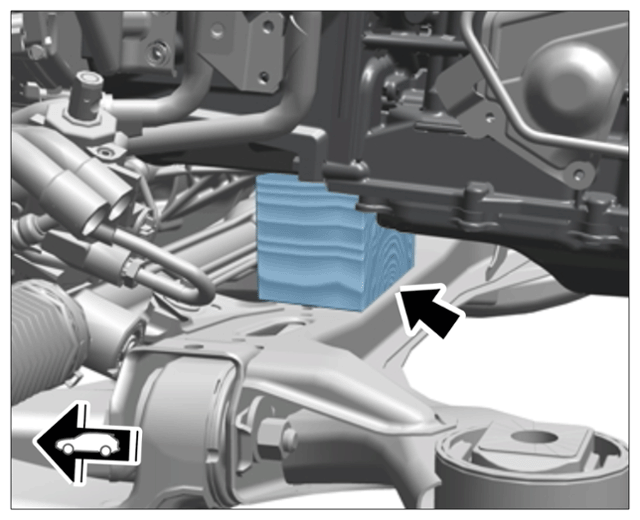

22. Secure the transmission using a suitable tool, e.g. a wooden block, to prevent it from tilting out of position.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wooden block placed underneath

23. Lift the engine/transmission unit until the four screws on the two engine mounts can be removed.

    > 103519 REMOVING AND INSTALLING ENGINE MOUNT

24. Slowly lower the engine/transmission unit onto the wooden block. The engine is still suspended securely on the workshop crane.

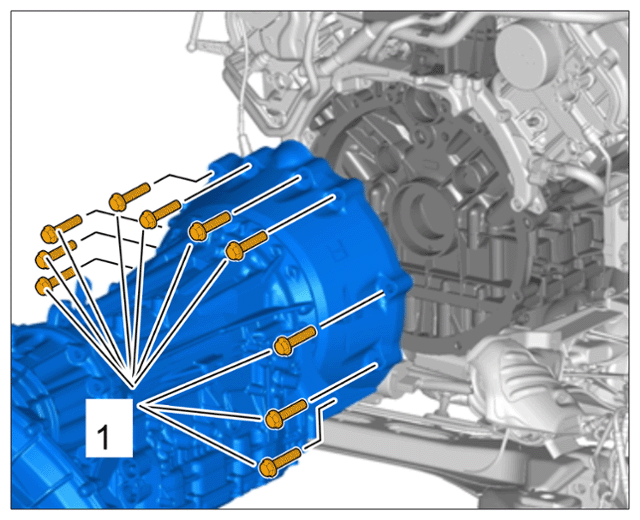

25. Loosen the fastening screws -1-  used to secure the transmission to the engine.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening transmission from engine

26. Remove engine from transmission. Press the converter off the drive plate using a screwdriver if necessary.
27. Remove the engine from the transmission at the lifting crane.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

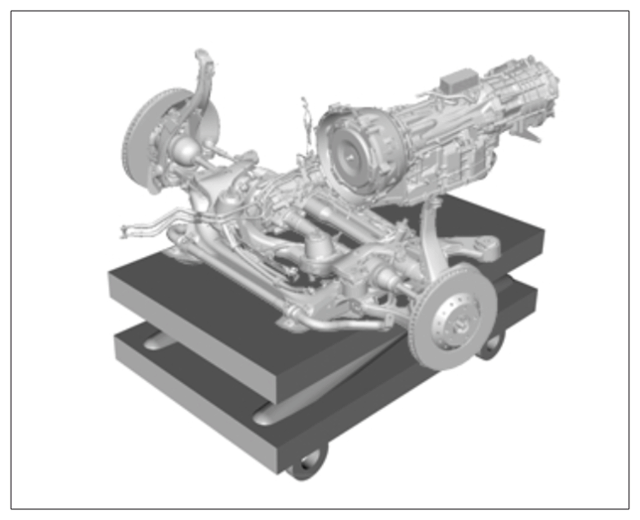

    Transmission without engine on lifting platform

    WARNING: Danger of objects or loads falling down

    • Risk of squashing or crushing


    →Secure components to prevent them from falling down.
28. Secure the transmission to the transmission cross member using a piece of wire or cable to prevent it from tipping over (transmission immediately tips to one side when removing the engine because of the transfer gear).
