Removing Wing Trim Panel

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Carefully unclip the wing trim panel -1-  using a plastic wedge.
2. Remove wing trim panel -1-  with fixing clips -3-  .
3. Pull grommets -2-  out of the body or from the fixing clips -3-  .

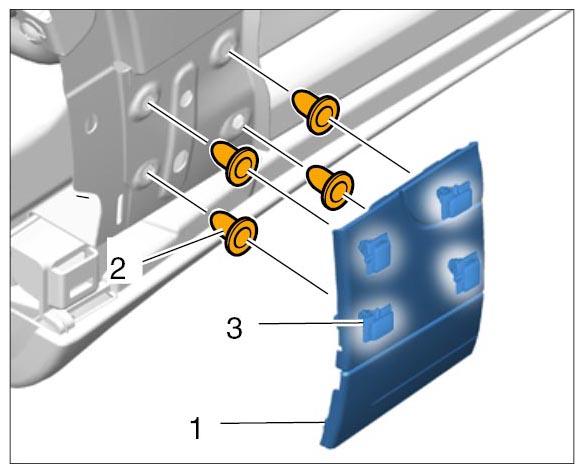

   Fig 1: Removing Wing Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
