Technical Values -70- Dashboard
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

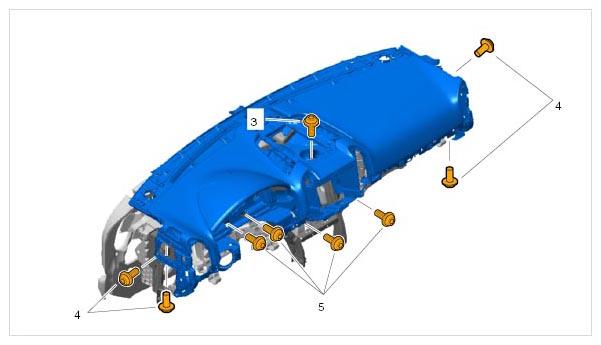

| Fastening screw at front of dashboard | Item 5 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
| Fastening screw at side of dashboard | Item 4 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
| Removing dashboard | |||||
| Fastening screw at top of dashboard | Item 3 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
