Technical Values: Overview
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

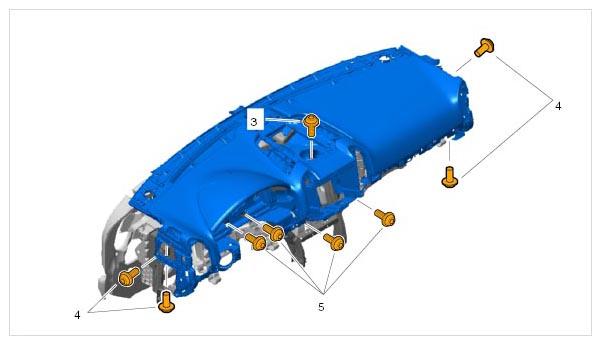

| Fastening screw at front of dashboard | Item 5 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
| Fastening screw at side of dashboard | Item 4 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||
| Fastening screw at top of dashboard | Item 3 | Tightening torque | 1.5 Nm (1 ftlb.) | ||
|
Removing dashboard |
|||||

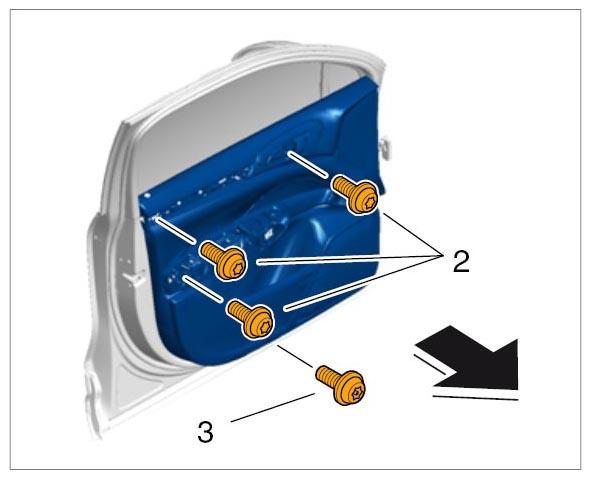

| Fastening screw for door panel | Item 2 | Tightening torque | 4.5 Nm (3.5 ftlb.) | ||
|
Door panel mounting |
|||||
| Fastening screw for door panel | Item 3 | Tightening torque | 2 Nm (1.5 ftlb.) | ||
|
Door panel mounting |
|||||

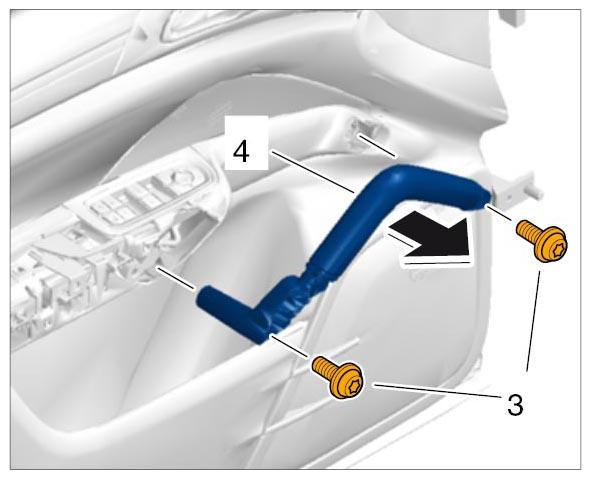

| Fastening screw for handle | Item 3 | Tightening torque | 4.5 Nm (3.5 ftlb.) | ||
|
Unscrewing fastening screws |
|||||

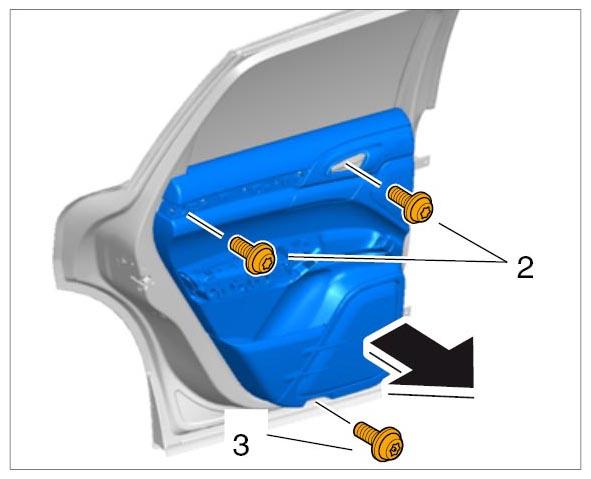

| Fastening screw for door panel | Item 2 | Tightening torque | 4.5 Nm (3.5 ftlb.) | ||
|
Loosening door panel |
|||||
| Fastening screw for door panel, bottom | Item 3 | Tightening torque | 2 Nm (1.5 ftlb.) | ||
|
Loosening door panel |
|||||

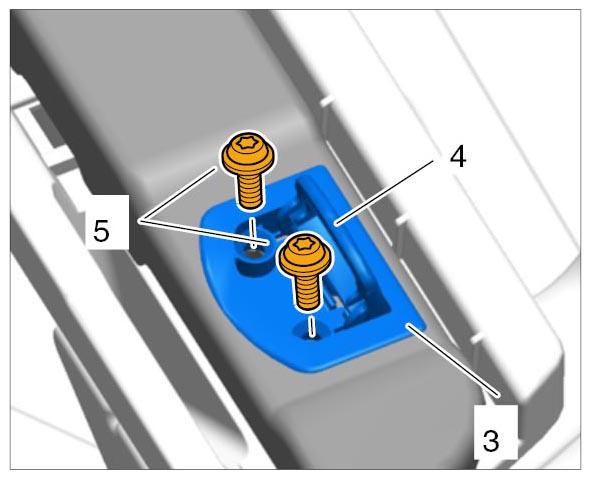

| Fastening screw securing lashing point to body | Item 5 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Removing lashing points |
|||||

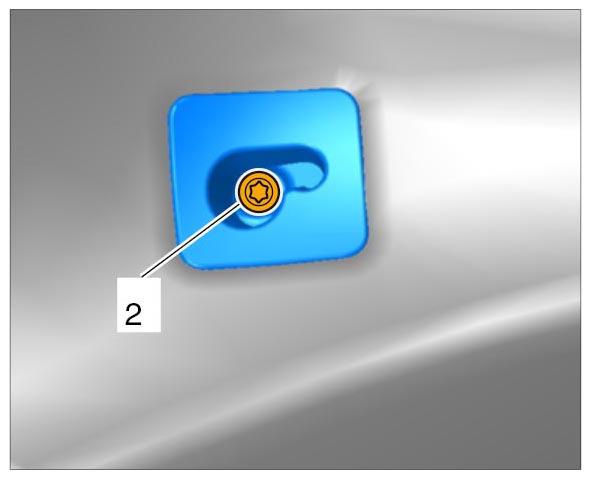

| Bracket for rear luggage net cover | Item 2 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Screws securing holder for rear luggage net cover |
|||||

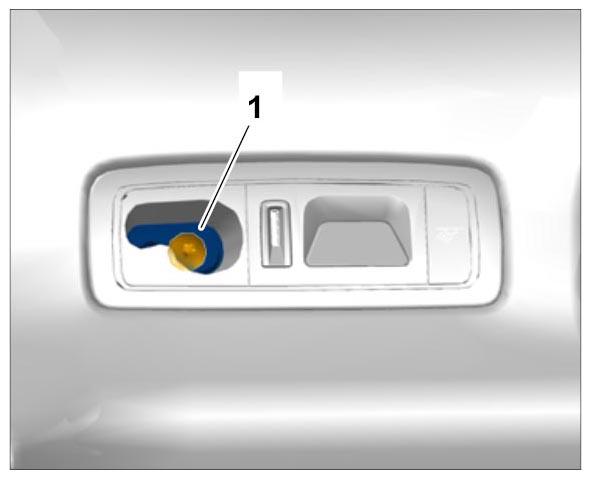

| Bracket for luggage net cover at the sides | Item 1 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Loosening holder at luggage net cover at the sides |
|||||
