Technical Values -70- Bracket For Luggage Net Cover
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

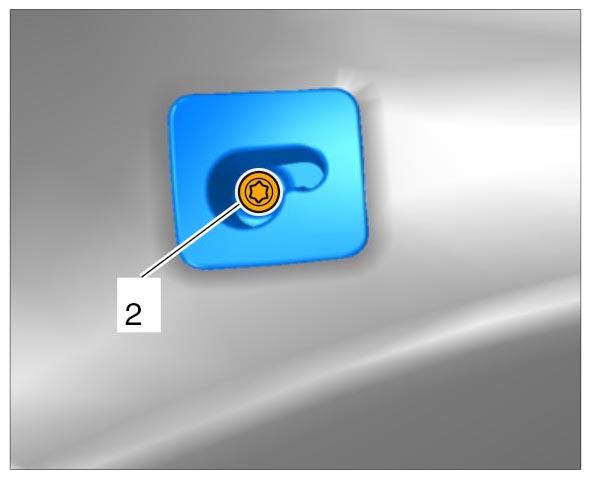

| Bracket for rear luggage net cover | Item 2 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Screws securing holder for rear luggage net cover |
|||||
| Bracket for luggage net cover at the sides | Item 1 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
| Loosening holder at luggage net cover at the sides | |||||
