WM 303019 Removing And Installing Clutch Slave Cylinder - 6-Speed Transmission: Removing

WARNING: This page is about a different variant/trim than selected.

Remove left transmission bracket with hydraulic mount.
Support transmission before removing the transmission bracket! When supporting the transmission, ensure that there is no tension on the screws on the transmission bracket -A-.

Unscrew nuts -arrows- on hydraulic mount -B-
1. Transmission bracket
2. Hydraulic mount
3. Fastening nut (never loosen!)
Unscrew screws -arrows- on transmission bracket -A- and remove transmission bracket -A- together with hydraulic mount.

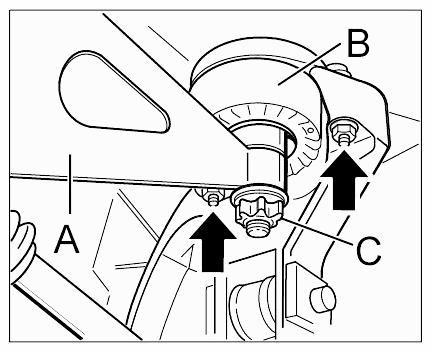

Fig 1: Removing Left Transmission Bracket With Hydraulic Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

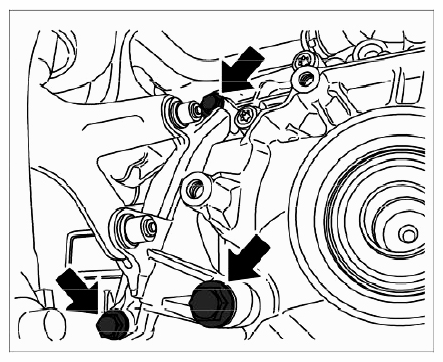

Fig 2: Locating Transmission Bracket Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lever off shift cable and connecting rods.
Lever off shift cable -1- and connecting rods -2, 3- at the exterior shift mechanism -4- .
1. Shift cable
2. Connecting rod
3. Connecting rod
4. Exterior shift mechanism

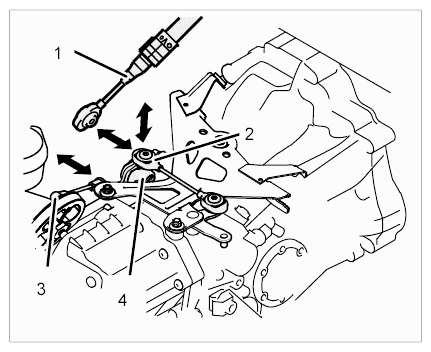

Fig 3: Exterior Shift Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove exterior shift mechanism.
1. 3.1. Unscrew nut -arrow- .

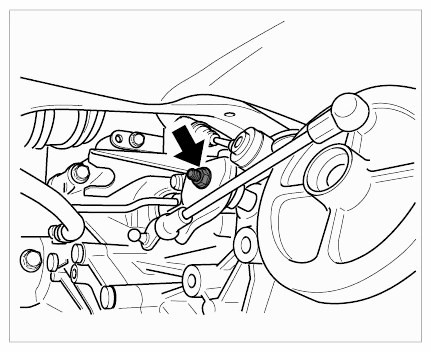

  Fig 4: Locating Exterior Shift Mechanism Fastening Nut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Pull exterior shift mechanism off the shifting shaft. Use puller 9736 to do this.

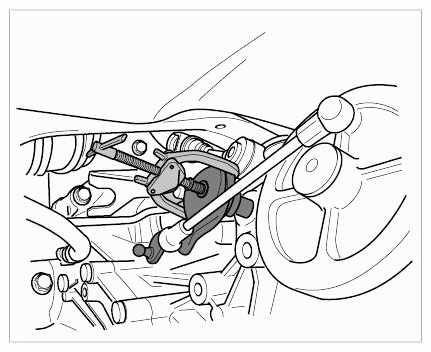

  Fig 5: Pulling Off Exterior Shift Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect clutch line on the clutch slave cylinder.
Close off the clutch line with a stopper.
Unscrew screw -arrow- and pull clutch slave cylinder out of the guide.

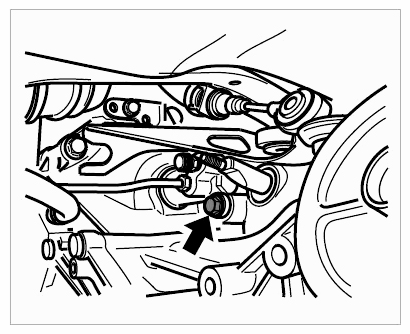

Fig 6: Locating Clutch Slave Cylinder Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
