Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Screw in the fastening screws -1-  and swivel the trim panel under the dashboard on the driver's side -2-  upwards -arrow A-  → INSTALLING TRIM UNDER DASHBOARD ON DRIVER'S SIDE

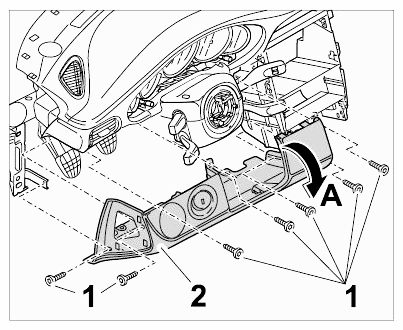

    Fig 1: Installing Trim Panel (Lower Part Of Dashboard)
    G09586472Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install covers for centre console → INSTALLING CENTRE CONSOLE COVER .
