Removing Drive Belt

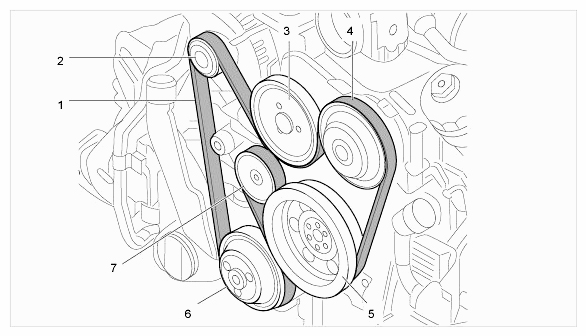

Drive belt routing (view on removed engine):

Fig 1: Identifying Drive Belt On Engine Related Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Drive belt
2. Generator pulley
3. Power-steering pump pulley (plastic)
4. Air-conditioning compressor pulley
5. Crankshaft vibration damper
6. Coolant pump pulley
7. Belt tensioner tensioning roller

→ Only remove the drive belt when it is cold.

→ Replace damaged drive belt.

Information

• Mark running direction of drive belt with a colored pen.
• Even minor damage means that the drive belt must be replaced (even if the maintenance interval has not expired).
• If the drive belt has to be replaced (change interval), it can be cut to facilitate removal.

1. Slacken the drive belt.

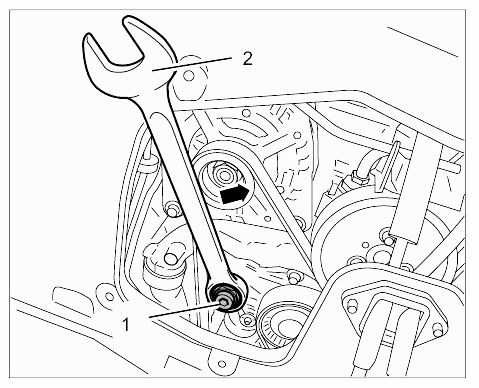

   1. 1.1. Fit a ring wrench (a/f 30) -2-  on the hexagon -1-  on the tensioner, turn it clockwise as far as it will go and hold it at that position.
      Fig 2: Fitting Ring Wrench (A/F 30) 2 On Hexagon 1 On Tensioner

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Remove drive belt from the pulley on the generator -arrow-  .
   3. 1.3. Carefully allow the tensioning roller to slide back to its original position.

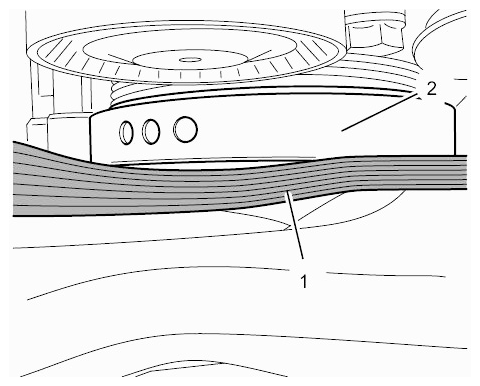

2. Feed the drive belt -1-  out between the engine bracket and vibration damper -2-  .
   Fig 3: Identifying Drive Belt And Vibration Damper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

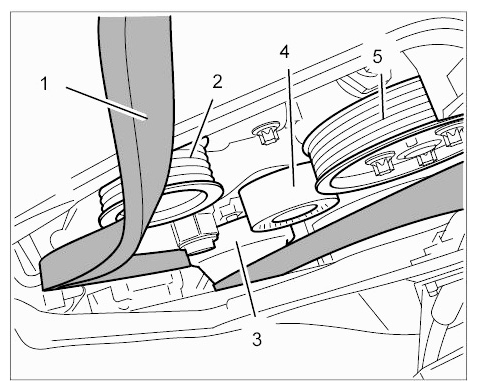

3. Feed out the drive belt on the various pulleys.
   1. Drive belt
   2. Generator pulley
   3. Coolant pump pulley
   4. Tensioning roller
   5. Hydraulic pump pulley (plastic)
      Fig 4: Identifying Drive Belt On Pulley

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

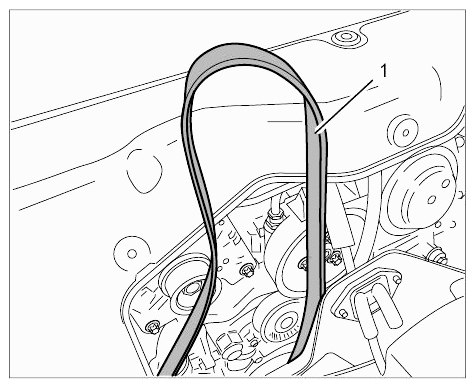

4. Take off the drive belt -1-  .
   1. 4.1. If you intend to re-install the drive belt, check it carefully for signs of damage on both running tracks.
      Fig 5: Identifying Drive Belt

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Check for foreign objects in the grooves of the pulley.
5. Check pulley for damage.
