Subsequent Work For Installing Belt Pulley

  1. Install pulley → 137619 REMOVING AND INSTALLING PULLEY .
  2. Fit drive belt → 137819 REMOVING AND INSTALLING DRIVE BELT .

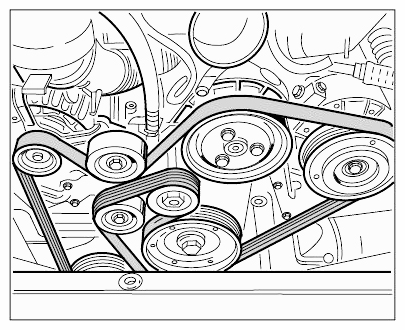

    Fig 1: Identifying Installed Position Of Drive Belt
    G09585384Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect the ground strap for the battery → Disconnecting and connecting the battery .
  4. Start the engine and allow it to warm up (operating temperature) and perform a visual inspection to check for leaks.
  5. Fit rear wall cover and rear wall lining, tighten screws and collar nuts. → Tightening torque: 7.5 ftlb.
