Removing Belt Pulley - Engine Installed

Information

To release and tighten the belt pulley, a second person must counter with the relevant retaining tool.

Component overview

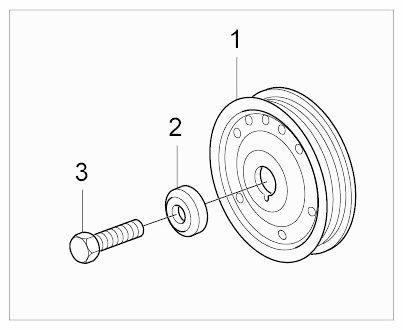

Fig 1: Identifying Belt Pulley Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• 1 - Belt pulley
• 2 - Washer
• 3 - Fastening screw

1. Position retaining device 9593  and a large torque wrench on the belt pulley and loosen the fastening screw. A second person must counter with the retaining tool.

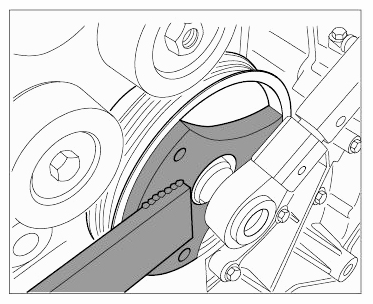

   Fig 2: Loosening Belt Pulley Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screw and remove belt pulley.
