Preliminary Work For Removing Pulley

  1. Move driver and passenger seats to the front-most position and fold over the backrests.
  2. Disconnect ground strap for battery.
  3. Place protective covers in the car to prevent damage and soiling.
  4. Remove rear wall lining of rear wall cover → 555919 REMOVING AND INSTALLING REAR WALL COVER .

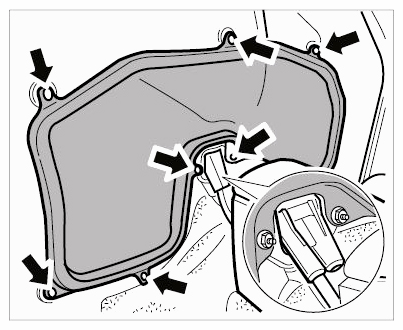

    Fig 1: Locating Rear Wall Cover
    G09585379Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove drive belt. Mark the running direction of the belt with a colored pen. Slacken the belt; to do so, turn tensioning roller (a/f 24) in a clockwise direction and at the same time, remove the belt from the tensioning roller or the deflection roller, → 137819 REMOVING AND INSTALLING DRIVE BELT .

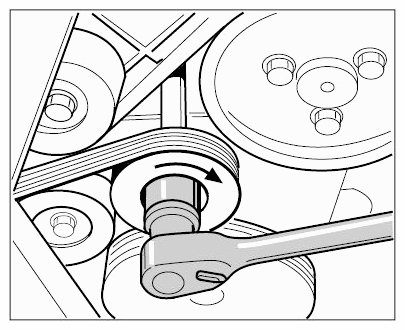

    Fig 2: Tensioning Pulley For Drive Belt
    G09585380Courtesy of PORSCHE CARS NORTH AMERICA, INC.
