Removing Belt Tensioner

  1. Unscrew fastening screw at the bottom -arrow-  of the tensioner.

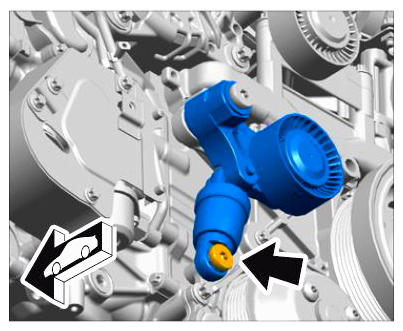

    Fig 1: Locating Belt Tensioner Screw (At Bottom Of Belt Tensioner)
    G09585341Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw at the top -arrow-  of the belt tensioner.

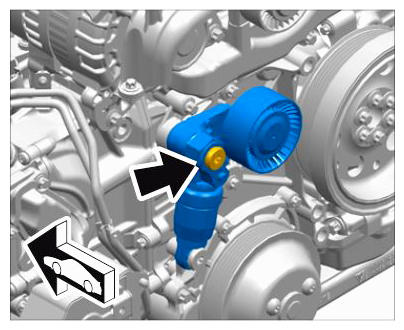

    Fig 2: Locating Belt Tensioner Screw (At Top Of Belt Tensioner)
    G09585342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Lift the belt tensioner up and off.
