Removing Flywheel - PDK Transmission

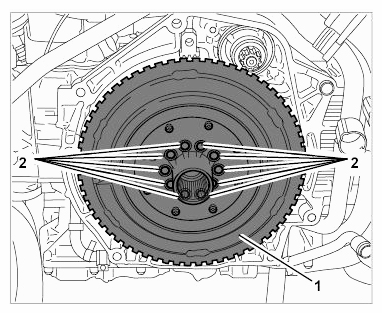

Flywheel for PDK transmission -1- with ten fastening screws -2-  .

Fig 1: Identifying PDK Flywheel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

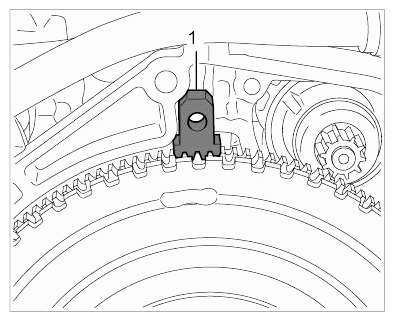

1. Position special tool toothed segment 9538/1 -1-  for countering at the starter ring gear.
   1. 1.1. Place toothed segment for loosening the screws on the cast edge of the left cylinder housing.
      Fig 2: Identifying Fastening Screws On Flywheel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen and unscrew ten M10 x 29 (internal serration) fastening screws. Carefully remove the flywheel (it is quite heavy - so be careful).
   1. 2.1. Check that the toothed segment is fitted correctly.
   2. 2.2. Replace fastening screws.

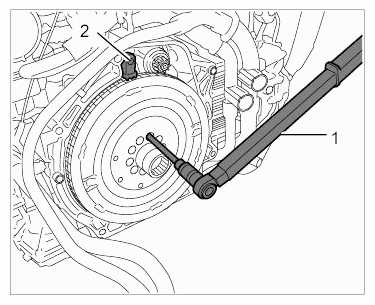

      Fig 3: Removing Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
