Removing Crankshaft

NOTE: Incorrect allocation of connecting rod and connecting rod cap
  • Risk of engine damage

→ Remove connecting rods one at a time.

→ When disassembling the connecting rod cap, connect it immediately to the related connecting rod.

→ Mark the installation position and related cylinder for each connecting rod and connecting rod cap.

→ Do not use prick punches or number embossing tools.

Gear carrier components overview with crankshaft

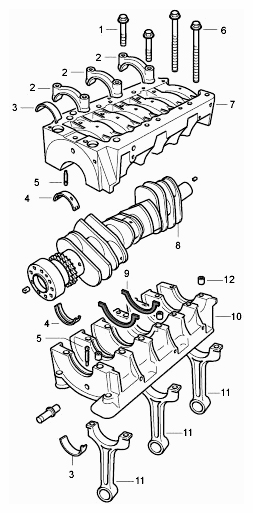

Fig 1: Exploded View Of Gear Carrier
G09585290Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Item No. Designation Number Removal Fitting
1 Connecting rod bolt, M9 x 1.25 6   Always replace
2 Connecting rod cap 3 Screw on immediately to associated connecting rod
3 Connecting rod bearing shell 6   Replace, grease (Optimol Optipit)
4 Crankshaft bearing shell 14   Replace, coat with new engine oil
5 Oil spray jet 6 Clean, replace if damaged Press in right to the stop using a plastic mandrel (ø 4 mm)
6 Thrust-bearing screw, M9 x 127 14   Tightening torque
7 Gear carrier half, cylinder 1-3 1
8 Crankshaft 1
9 Thrust washer 2   Position correctly, oil grooves always point outwards
10 Gear carrier half, cylinder 4-6 1
11 Connecting rods, cylinder 4-6 3 Immediately join with the associated connecting rod cap after removal
  1. Fasten the special tool retaining device 9607  onto the workbench using two screw clamps.
  2. Mark connecting rod 4-6 in the installation position.
  3. Remove connecting rods on cylinder side 4-6 one after another. Loosen the two connecting rod bolts on each connecting rod, remove connecting rod cap. Using a plastic mandrel (possibly an in-house tool) push connecting rod down and out. Immediately after this, screw on loosely to associated connecting rod cap. Place on a clean surface.

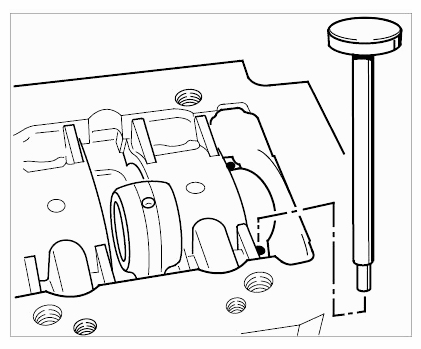

    Fig 2: Identifying Plastic Mandrel
    G09585291Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Loosen 14 M9 x 127 screws for the gear carrier in the opposite order to the tightening sequence, from the outside inwards, and unscrew them.

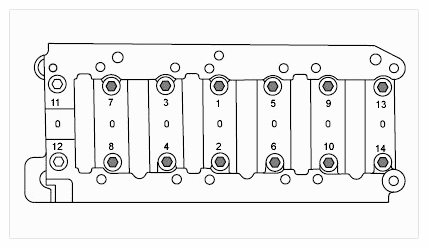

    Fig 3: Identifying Gear Carrier Screws Tightening Sequence
    G09585292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Watch out for bearing shells and oil spray jets that may fall out

  5. Remove gear carrier half 1-3, possibly tapping it gently with a plastic hammer.
  6. Place gear carrier half on a clean surface, remove seven crankshaft bearing shells and three oil spray jets for piston cooling.

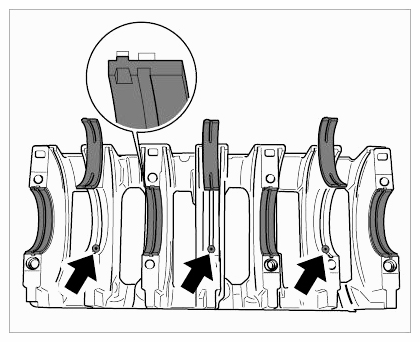

    Fig 4: Locating Oil Spray Jets In Gear Carrier Half 1-3
    G09585293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Lever out crankshaft with timing chain and place on a soft, clean surface.
  8. Remove seven crankshaft bearing shells and oil spray jets for piston cooling from gearing carrier half 4-6. Unscrew gear carrier half from the retaining device and place on a clean surface.
