Adjusting Stop For Convertible Top Compartment Lid

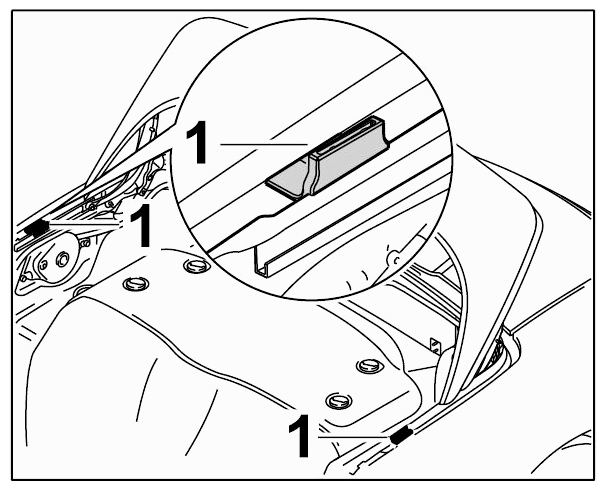

Fig 1: Identifying Installation Position Of Stop For Convertible Top Compartment Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjust stop 1 for the convertible top compartment lid to match the contour of the side panel. The stops 1 come in variants +1 mm to +5 mm as spare parts.

1. Fit stop 1  on the sheetmetal bracket 2  in the water channel of the side panel. Adjust in accordance with joining plan.

   → WM 5X00IN DIAGRAM - BODY GAP DIMENSIONS (ALL MODELS)

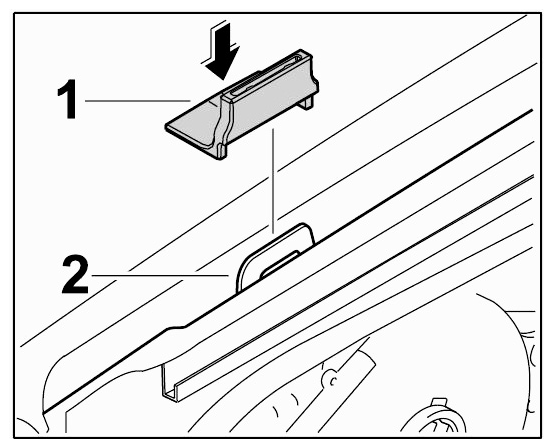

   Fig 2: Installing Stop For Convertible Top Compartment Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
