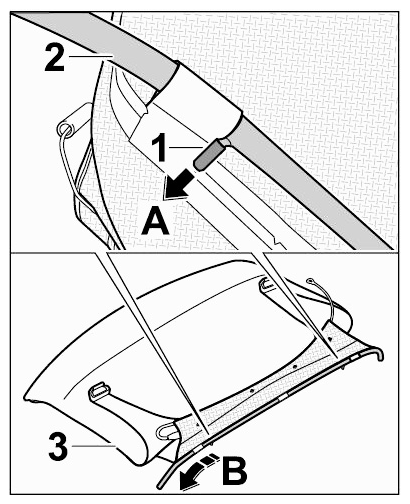

Removing Middle Corner Bow Tube
- Press out the corner bow sleeve -1-
with a screwdriver -arrow A-
.
- Slide the middle corner bow tube -2-
at the side out of the bracket for the hood covering -3- (-arrow B-).
