Installing Middle Corner Bow Tube

Slide the middle corner bow tube -2- into the bracket for the hood covering -3- (-arrow A-).
Press the corner bow sleeve -1- into the middle corner bow tube -2- - -arrow B-

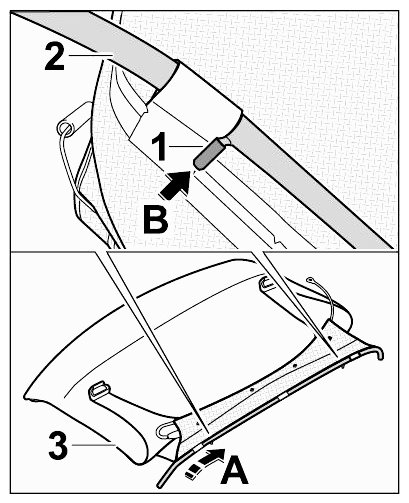

Fig 1: Installing Middle Corner Bow Tube

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
