Installing Upper/Lower Part Of Tenax Fastener

  1. Install upper part of Tenax fastener.
    1. 1.1. Position upper part of Tenax fastener -2-  in the hole provided for this purpose on the weather protector -3-  .
    2. 1.2. Screw in twist lock -1-  slightly by hand.
    3. 1.3. Counter upper part of Tenax fastener -2-  with your hand and tighten with the Seeger circlip ring pliers -arrow-  .

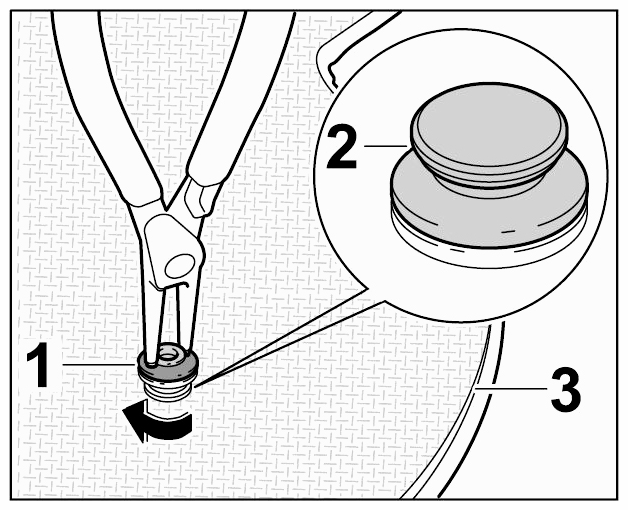

      4. Fig 1: Installing Upper Part Of Tenax Fastener
      G09590236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install lower part of Tenax fastener.

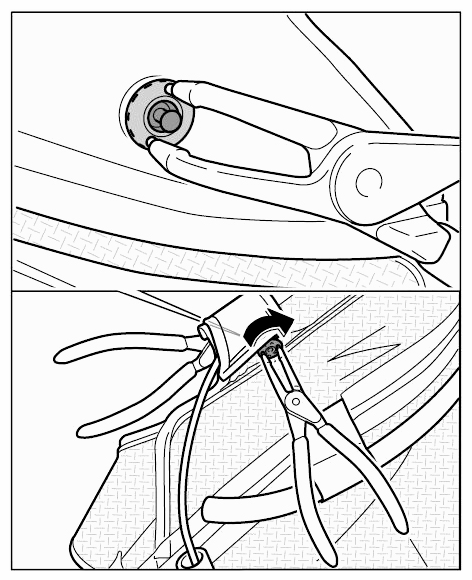

    Fig 2: Installing Lower Part Of Tenax Fastener
    G09590237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Position lower part of Tenax fastener in the hole provided for this purpose on the hood covering.
    2. 2.2. Screw in twist lock slightly by hand and then tighten with the Seeger circlip ring pliers -arrow-  .
