Installing Tensioning Element

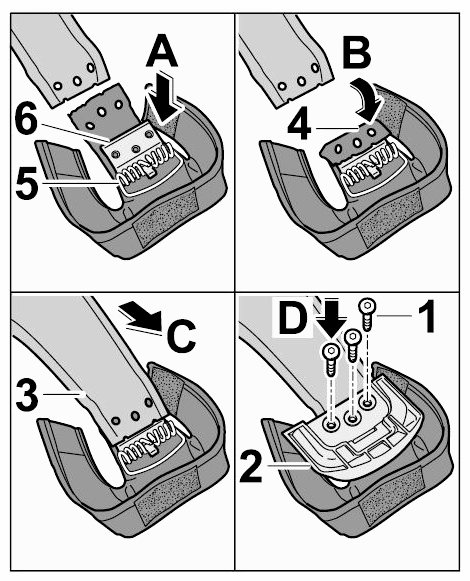

- Position spiral spring -5-
with the spring plate -6-
on the fabric cover -4- (-arrow A-)
and fold over the fabric cover -arrow B-
.
- Position the hood covering -3-
on the fabric cover in such a way -arrow C-
that the holes are aligned with the bores in the spring plate.
- Position the tensioning element -2-
and secure with the fastening screws -1- (-arrow D-)
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

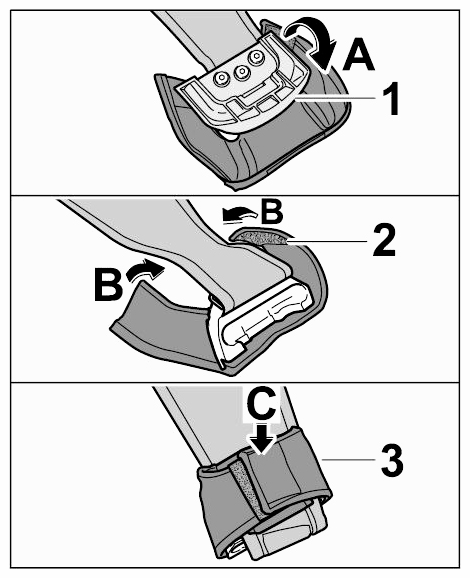

- Fold the tensioning element -1-
over by 90° -arrow A-
.
- Fold over the Velcro fastener -2-
on the fabric cover -3- (-arrows B-)
and press it on -arrow C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
