61 - Convertible Top, Hardtop -- 987-BOXSTER
>>
WM 612855 Replacing Convertible-Top Covering (BOXSTER SPYDER)
>>
Assembling Convertible-Top Covering
>>
Installing Outer Corner Bow Seal
Installing Outer Corner Bow Seal

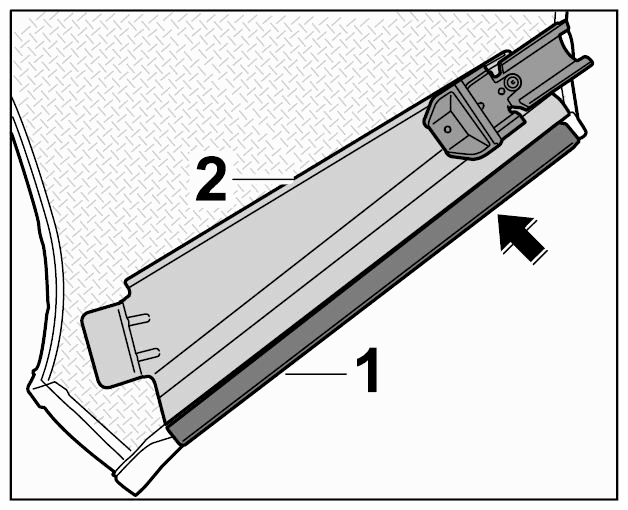

Push corner bow seal
-1-
onto the corner bow
-2- (-arrow-)
.
Fig 1: Locating Fitting Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
