Installing Corner Bow Clip

Information

• Only use blind rivets from the parts package.

1. Fit clip -2-  on the corner bow -3-  , position it and secure with blind rivets -1-  .

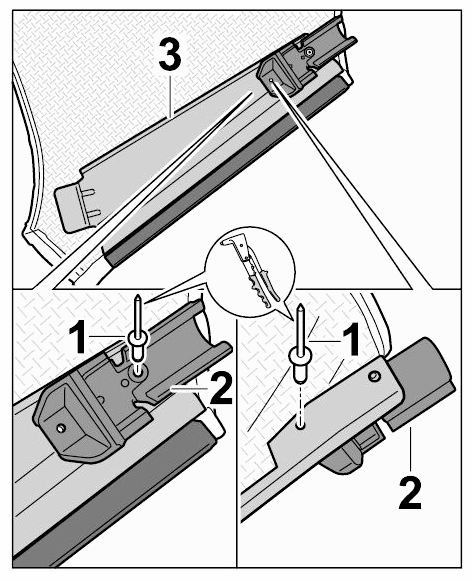

   Fig 1: Identifying Blind Rivets, Corner Bow And Fit Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
