Removing Rear Inner Side Section

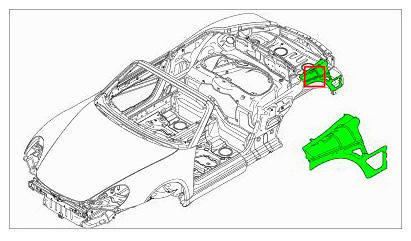

Fig 1: Inner Side Section Component Location
G09589481Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove outer rear wheel housing. → Removing Outer Rear Wheel Housing
  2. Milling off spotwelds
    1. 2.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter.

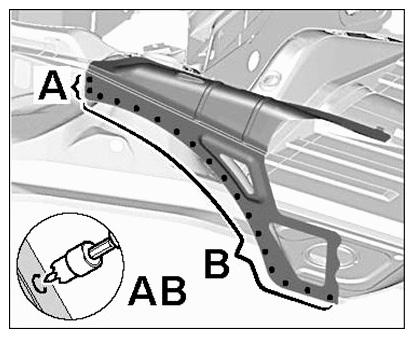

    Fig 2: Identifying Spotwelds Area (A And B)
    G09589482Courtesy of PORSCHE CARS NORTH AMERICA, INC.
