Possible Separation Points

  1. Possible separation points
    1. 1.1. In the rear side member
    2. 1.2. The joint on the inner side member must be located in front of the tailored blank weld (laser weld) X  , area a or b  at dimension Y = 30 mm  .

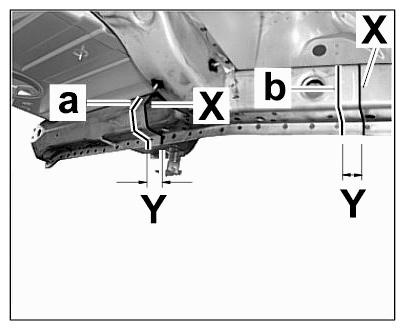

    Fig 1: Identifying Separation Points
    G09589299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
