Preparing Connection Areas Of Body For Installing The Closing Cross Member

  1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

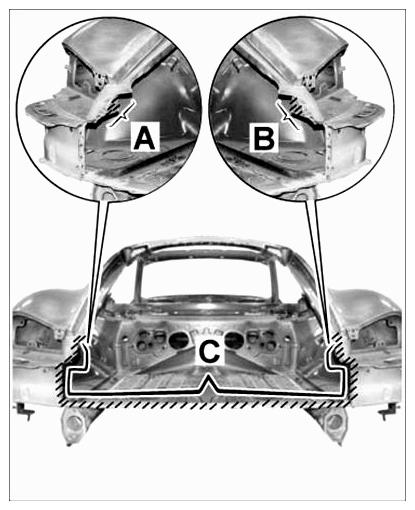

    Fig 1: Preparing Body For Closing Cross Member Connection Areas
    G09589162Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Coating spot-weld flange areas with zinc powder paint
    1. 2.1. Coat spot-weld flange areas with zinc powder paint.
