Installing Air Cushion Motor

  1. Position air cushion motor -2-  and push on the white hose -4-  onto the air cushion control valve -arrow A-  .

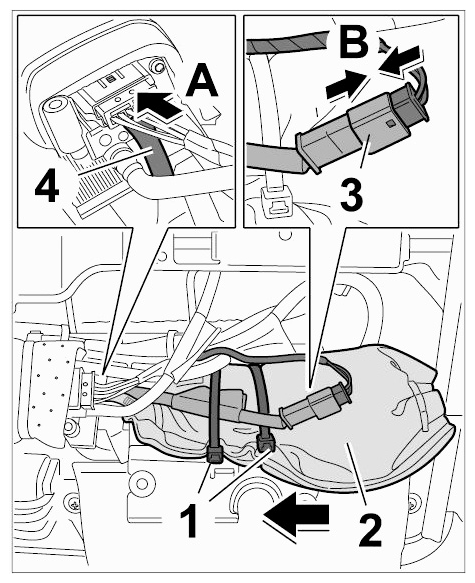

    Fig 1: Installing Air Cushion Motor
    G09592332Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push the plug connection -3-  together -arrows B-  until it is felt to engage.

    Information

    Observe hose routing!

    Ensure that no hoses are disconnected by the tie-wraps.

  3. Secure air cushion motor -2-  onto support using two new tie-wraps -1-  .
  4. Position support -2-  with connected motor and air cushion control valve and screw down with the two fastening screws -1-  .

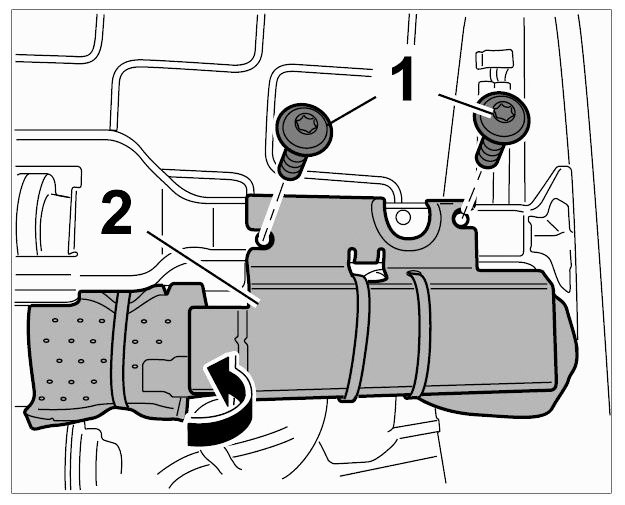

    Fig 2: Securing Compressor And Air Distributor Valve Support
    G09592333Courtesy of PORSCHE CARS NORTH AMERICA, INC.
