Installing Air Cushion Control Valve

Position air cushion control valve -2- and tighten with the fastening screw -1- .

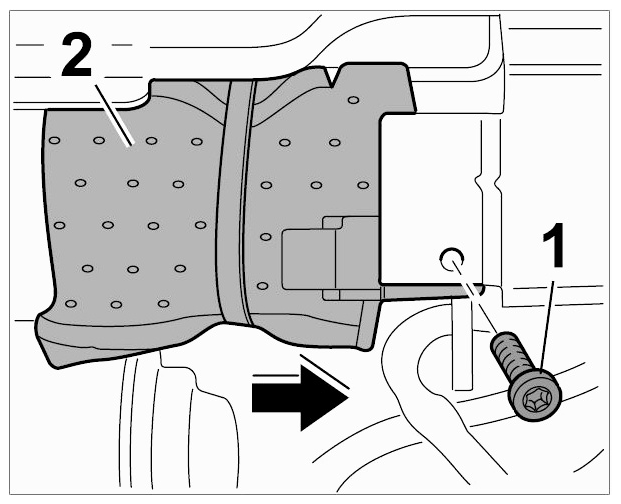

Fig 1: Installing Air Cushion Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe the installation position of the hoses!

Push on the blue hose onto the connection marked B and push on the red hose onto the connection marked R.
Push on the three hoses -2- onto the air cushion control valve.

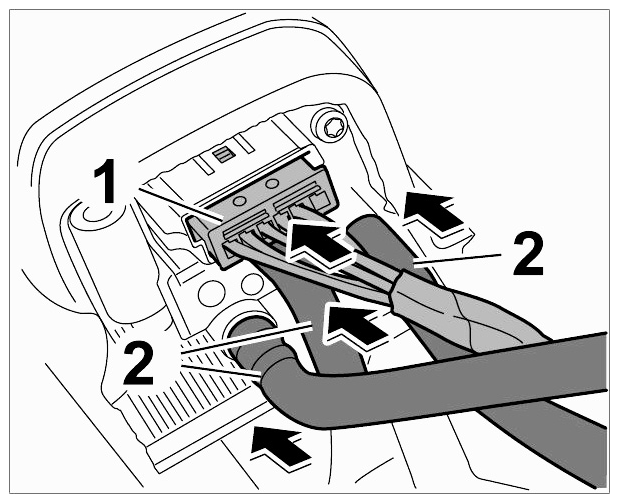

Fig 2: Pushing Connector And Hoses Onto Air Cushion Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on connector -1- onto air cushion control valve until this engages audibly.
Position support -2- with connected motor and air cushion control valve and screw down with the two fastening screws -1- .

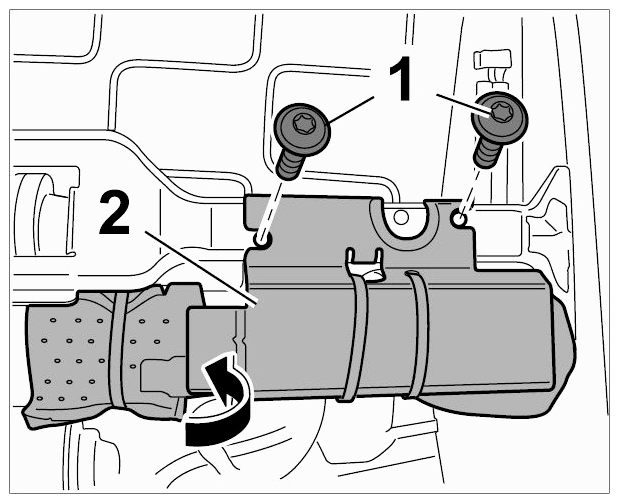

Fig 3: Securing Compressor And Air Distributor Valve Support
