Installing Cushion Carrier For Front Backrest

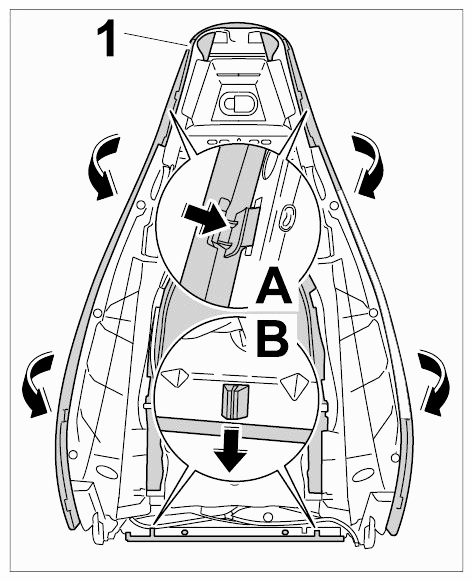

Press cushion carrier -1- outward slightly in area of backrest release and position it on the backrest frame -2- until the locking tabs engage at the top -Inset A- and bottom -Inset B- .

Fig 1: Installing Cushion Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

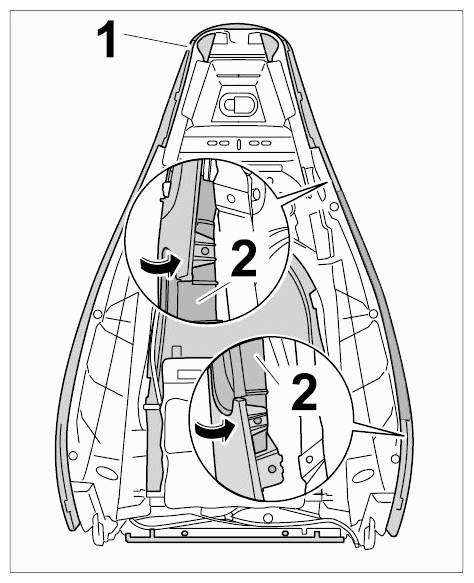

Press cushion carrier -1- at the sides into the frame for the side airbag -2- until the locking tabs engage.

Fig 2: Fastening Cushion Carrier (Sides)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

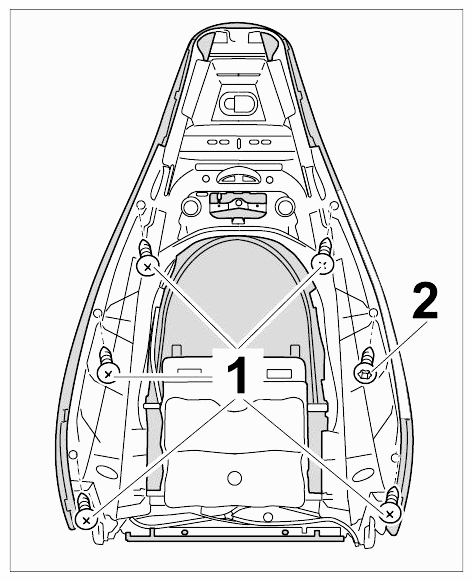

Tighten fastening screws -1, 2- .

Fig 3: Securing Cushion Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

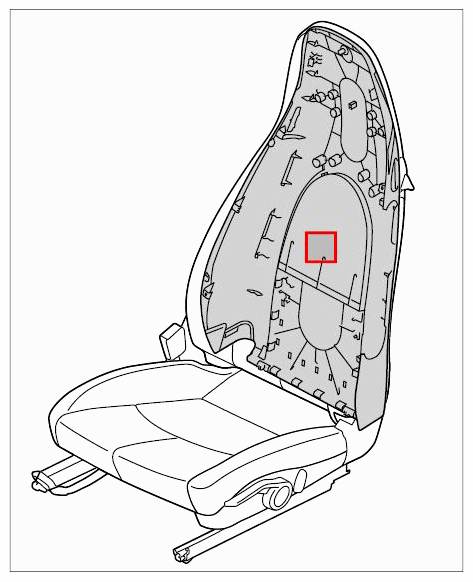

Fig 1: Identifying Cushion Carrier Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

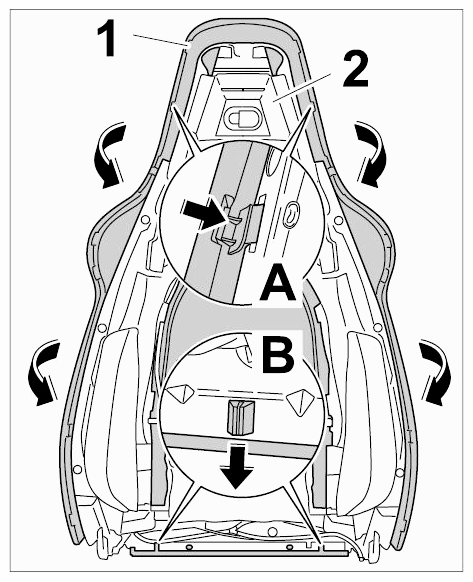

Press cushion carrier -1- outward slightly close to the backrest release and position it on the backrest frame -2- until the locking tabs engage at the top -Inset A- and bottom -Inset B- .

Fig 2: Installing Cushion Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

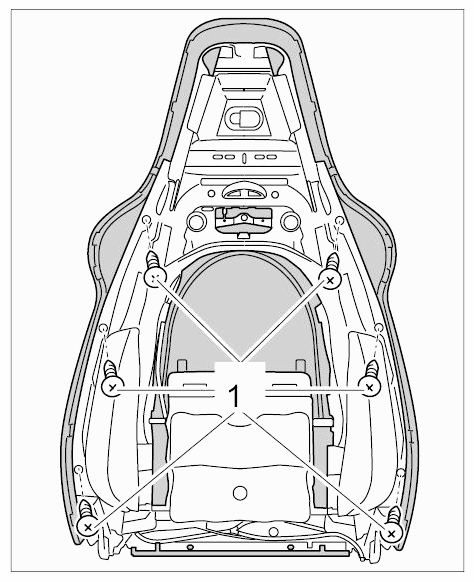

Tighten fastening screws -1- .

Fig 3: Securing Cushion Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

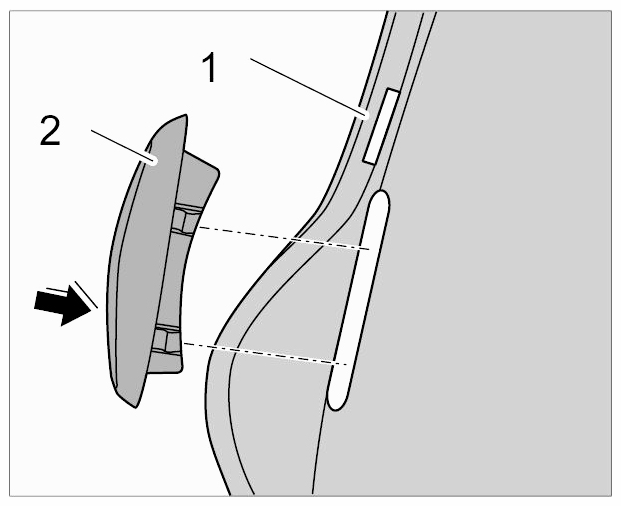

Position collar -2- on the cushion carrier -1- and press in until it clicks into place.

Fig 4: Installing Collar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

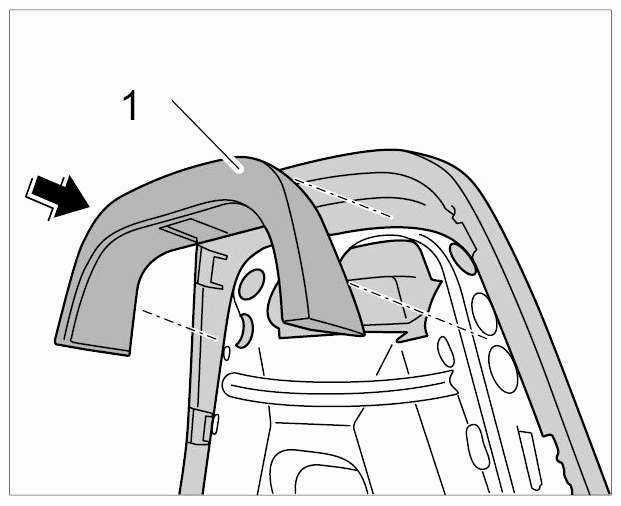

Fit foam part of headrest -1- .

Fig 5: Fitting Headrest Foam Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
