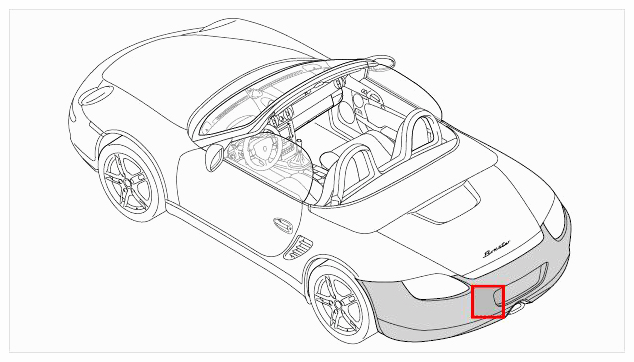

Installing Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Check the heat shields on the vehicle before fitting the rear spoiler and replace the heat protection shield if necessary. Check that the heat shields are properly fitted and correct if necessary. → Correct Assembly Of Heat Protection Panels

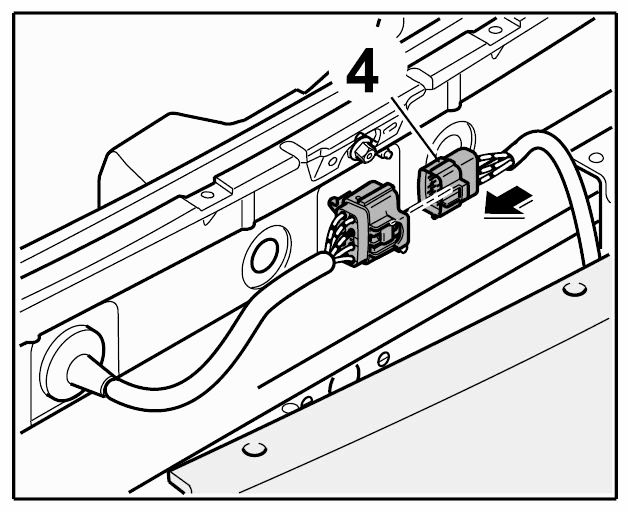

- Plug in electrical plug connection -4-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

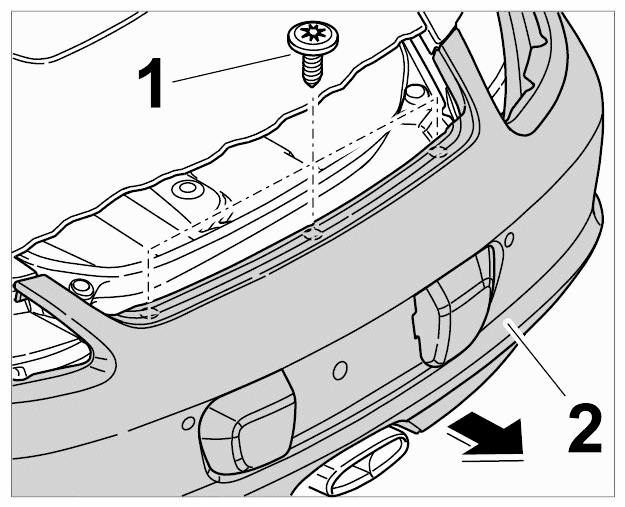

- Position rear spoiler -2-
on the vehicle
- Screw in fastening screws -1-
above and below on the rear apron -2-
and tighten to tightening torque → Tightening torque: 2 ftlb..
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

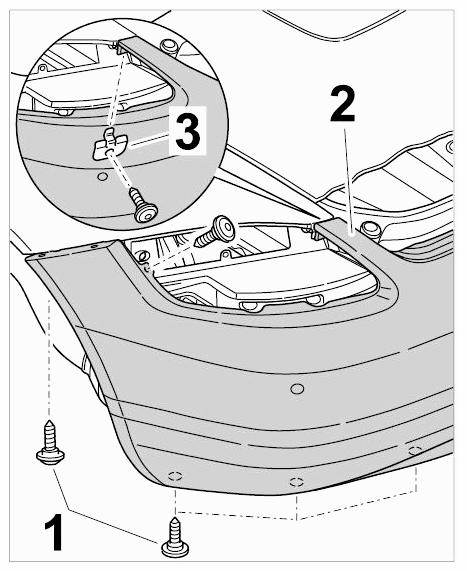

- Engage retainer plate -3-
in square opening.
- Screw in fastening screws -1-
laterally on the rear apron -2-
and tighten to the specified torque. → Tightening torque: 2 ftlb.
.
