Installing Reinforcement For Front Wheel Housing

Information

Determine the position of the new part and secure with tensioning clamps.

When butt welding body sheet panels with a sheet thickness of > 1.5 mm, there must be a welding slit width s = 1 x sheet thickness to guarantee the required welding quality (welding through).

1. Weld in reinforcement for front wheel housing.
   1. 1.1. Resistance spot-weld reinforcement for front wheel housing in areas -A, B, C, D-  .

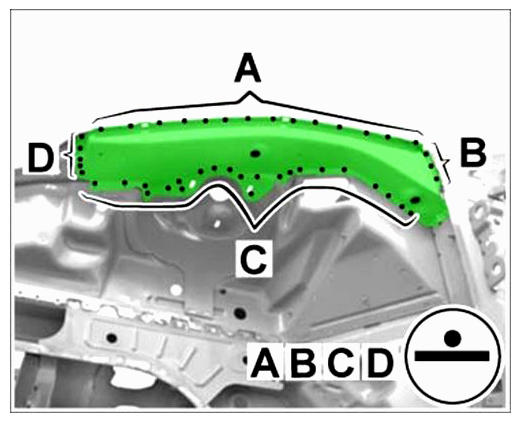

   Fig 1: Identifying Front Wheel Housing Reinforcement Welding Area (Area A, B, C And D)
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Weld in reinforcement for front wheel housing.
   1. 2.1. Plug-weld reinforcement for front wheel housing in area -A-  using inert gas.

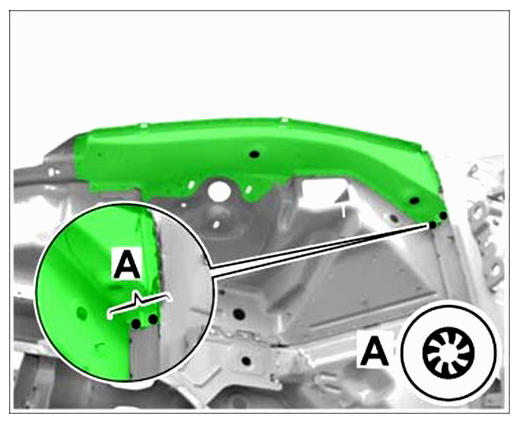

   Fig 2: Identifying Front Wheel Housing Reinforcement Welding Area (Area A)
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install front outer side member. → Installing Outer Front Side Member
