Removing Retaining Strip

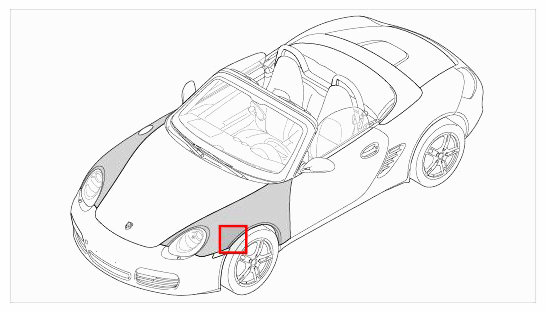

Fig 1: Fender Location
G09588299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -14-  from retaining strip -15-  and remove retaining strip.
  2. Unclip fastening nut -16-  .

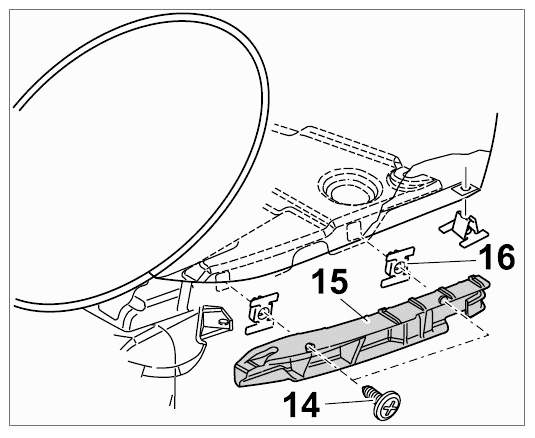

    3. Fig 2: Identifying Retaining Strip And Fastening Screws
    G09588300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
