Fastening Fender To A-Pillar

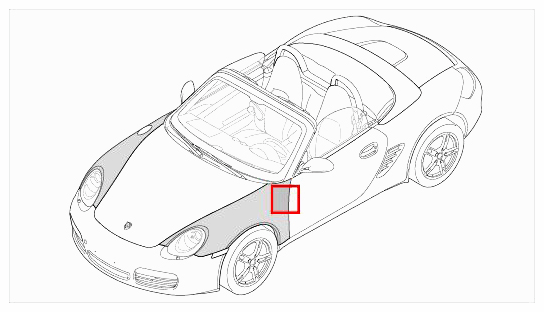

Fig 1: Fender Location
G09588309Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Install switching element for filler flap. → INSTALLING SWITCHING ELEMENT FOR FILLER FLAP
  2. Press in fastening nut -20-  .
  3. Position fender -19-  on the body -C-  and slide towards A-pillar -D-  . Screw in fastening screws -18-  into the A-pillar and tighten lightly.

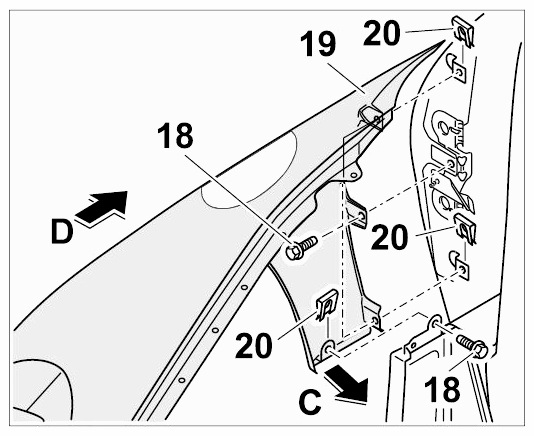

    4. Fig 2: Fastening Fender To A-Pillar
    G09588310Courtesy of PORSCHE CARS NORTH AMERICA, INC.
