Fastening Bottom Of Fender

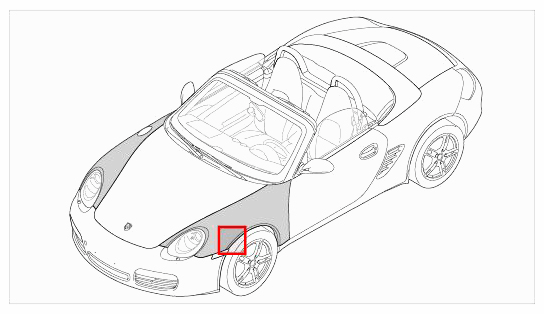

Fig 1: Fender Location
G09588313Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position fender strut -11-  and bracket -12-  on the body and tighten with fastening nuts -10-  . Tightening torque → Tightening torque: 7.0 ftlb.

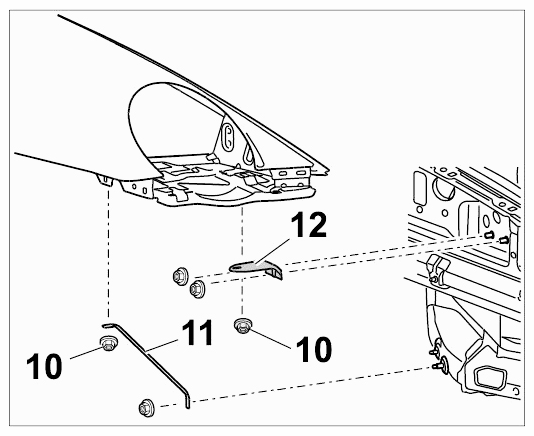

    2. Fig 2: Identifying Fender Strut, Bracket And Fastening Nuts
    G09588314Courtesy of PORSCHE CARS NORTH AMERICA, INC.
