Removing Reservoir For Windscreen Washer System

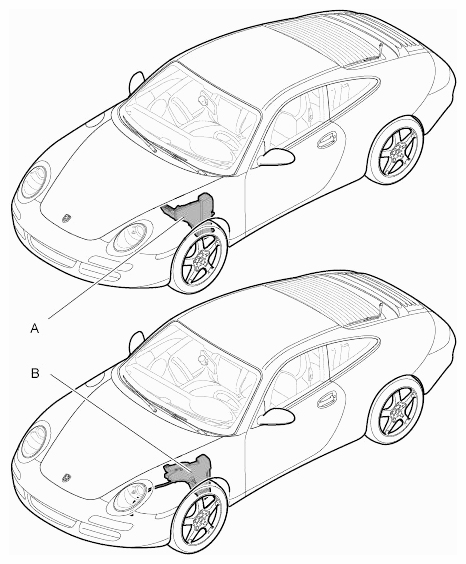

Fig 1: Identifying Reservoir For Windscreen Washer System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.5 l tank
2. 6.5 l tank (M288)

1. Lift lever on water filler neck and pull out the filler neck.

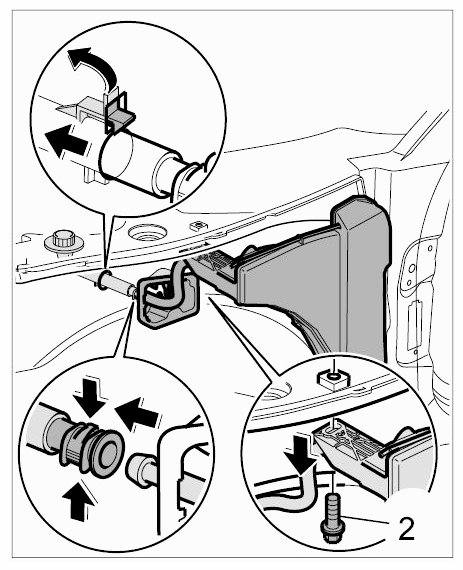

   Fig 2: Removing Water Filler Neck

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release water connection for the windscreen washer spray nozzles and pull apart.
3. Release water connection for the headlight washer spray nozzles and pull apart.
4. Unscrew fastening screw -2-  and pull the tank from the mounting point on the A-pillar.
5. Release the electrical plugs -a-  and pull them off.

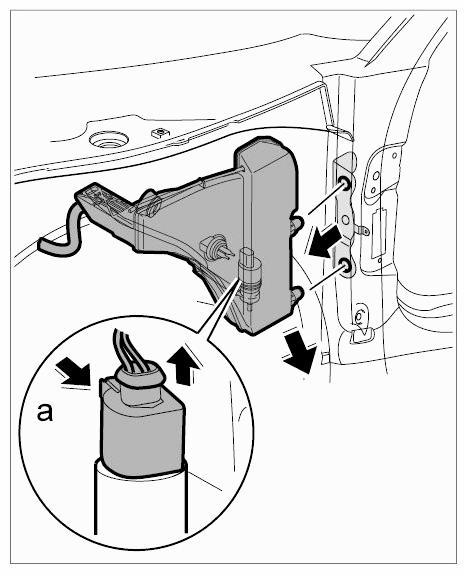

   Fig 3: Releasing Electrical Plugs

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
