Installing Backrest Side Support

Information

Observe hose routing!

In vehicles with lumbar support, make sure the hoses are routed correctly in the area of the backrest side support.

  1. Fit backrest side support -2-  and screw down with the four fastening screws -1-  .

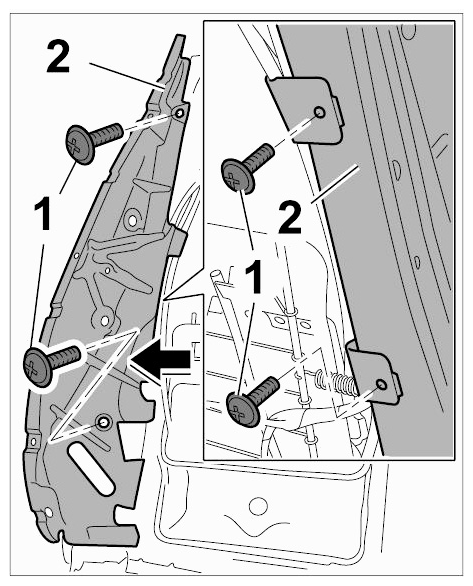

    Fig 1: Installing Backrest Side Support
    G09592369Courtesy of PORSCHE CARS NORTH AMERICA, INC.
