Removing Switch For Seat Adjustment

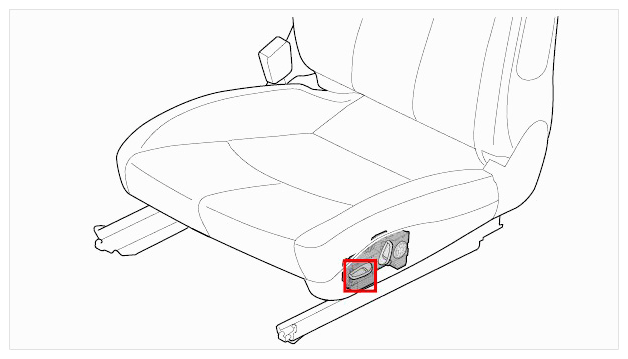

Fig 1: Identifying Seat Adjustment Switch Installation Position
G09592334Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Carefully unclip the two control buttons -1-  using a plastic wedge.

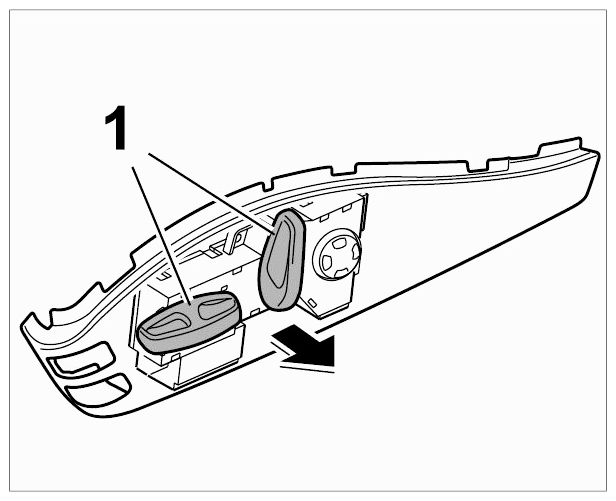

    Fig 2: Removing Seat Adjustment Switch Control Buttons
    G09592335Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew the three fastening screws -1-  and remove seat adjustment switch -2-  .

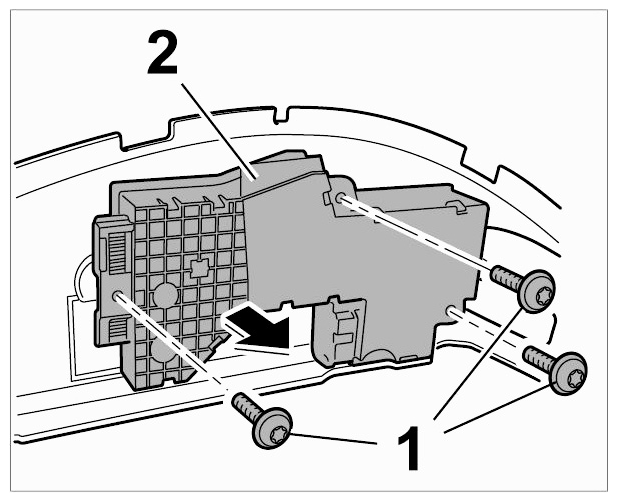

    Fig 3: Removing Seat Adjustment Switch
    G09592336Courtesy of PORSCHE CARS NORTH AMERICA, INC.
