Installing Switch For Seat Adjustment

Position switch for seat adjustment -2- and screw down using the three fastening screws -1- .

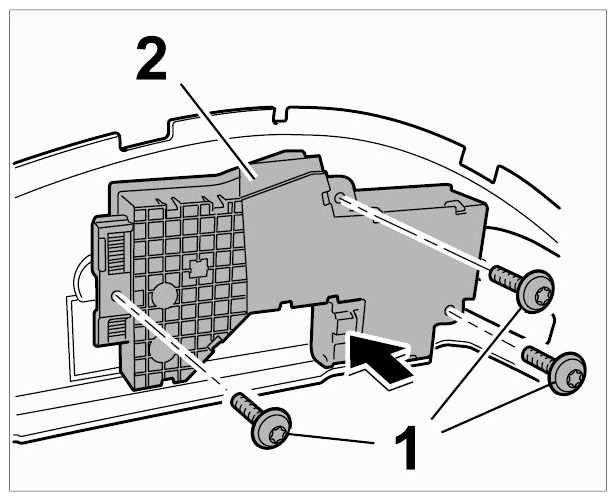

Fig 1: Installing Seat Adjustment Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the two control buttons -1- precisely and carefully press down onto the seat adjustment switch until they are felt to engage.

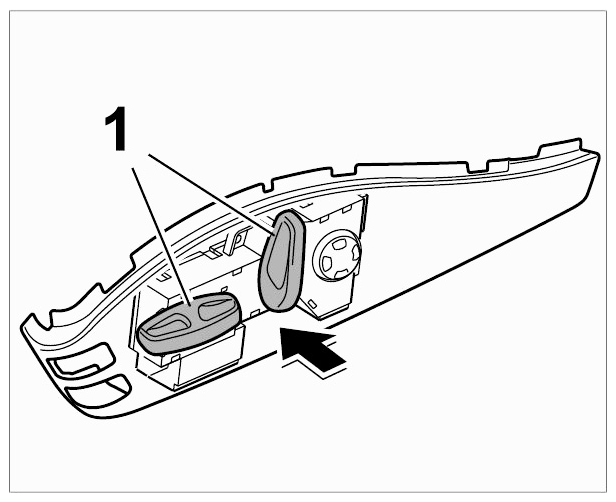

Fig 2: Installing Control Buttons
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The assembly clip must be removed in order to install a new seat adjustment switch.
Use a small screwdriver to lever the assembly clip -1- out of the seat adjustment switch -2- .

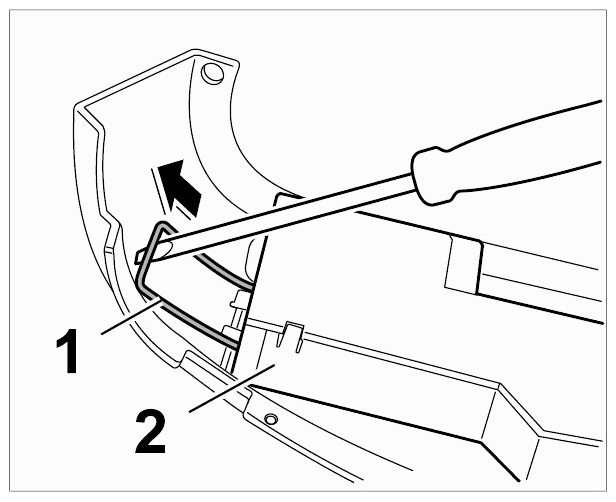

Fig 3: Removing Assembly Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
