Taking Off Foam Part

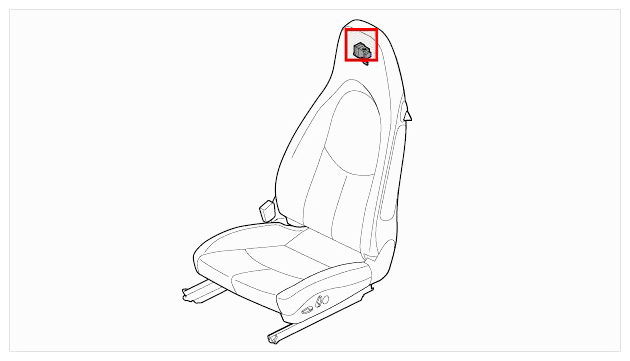

Fig 1: Identifying Control Valve Lumbar Support Adjustment Installation Position
G09592295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove foam part -1-  at the headrest.

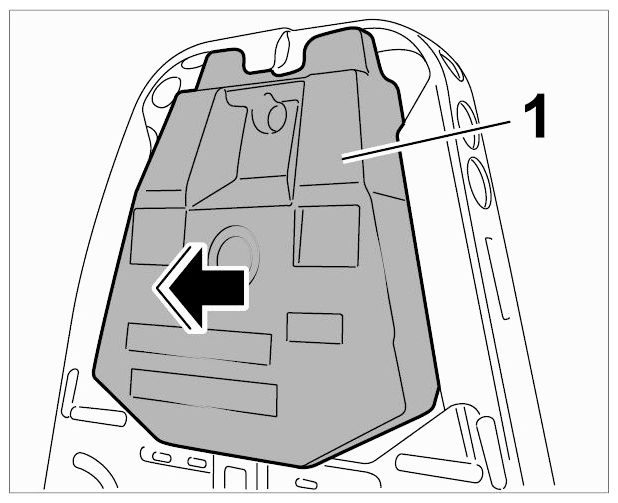

    Fig 2: Removing Control Valve Lumbar Support Adjustment Foam Part
    G09592296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
