Installing Lumbar Support: Notes

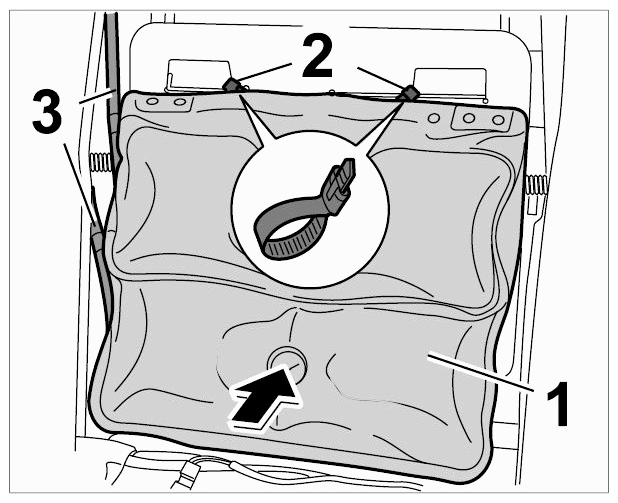

Install the lumbar support -1- together with the red and blue hose -3- .

Fig 1: Installing Lumbar Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the lumbar support -1- to the grille using two new tie-wraps -2- .
Information

Only for seats with a memory function

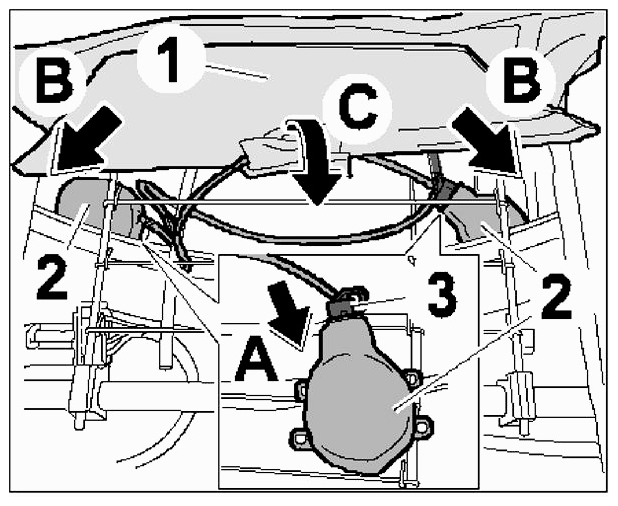

Attach connectors to the lumbar support sensors.

Fig 2: Attaching Connectors To Lumbar Support Sensors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe installation position of connectors!

Push red-lilac-brown connector onto the sensor at the top air cushion.

Push red-white-brown connector onto the sensor at the bottom air cushion.
1. 3.1. Connect the two connectors -3- to the sensors -2- (-arrow A- ) until they engage securely.
2. 3.2. Push the two sensors -2- behind the backrest panel -arrows B- and fold down the lumbar support -1- (-arrow C- ).

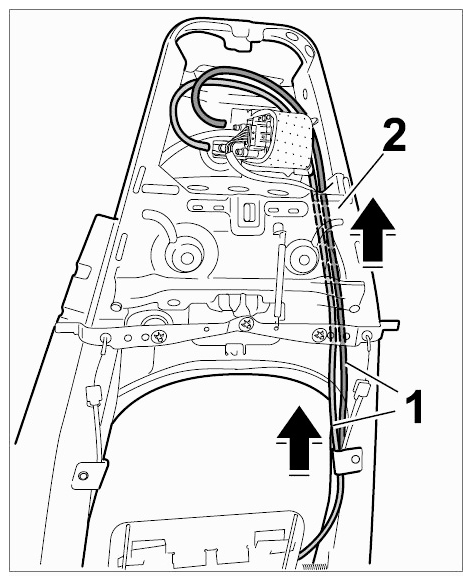

Lay the red hose and the blue hose -1- on the backrest frame -2- .

Fig 3: Laying Hoses On Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe the installation position of the hoses!

Push on the blue hose onto the connection marked B and push on the red hose onto the connection marked R.

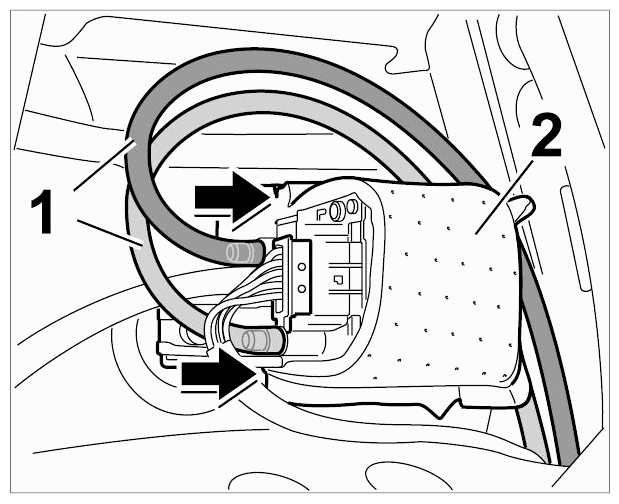

Slide the red and blue hose -1- onto the lumbar support control valve -2- .

Fig 4: Sliding Hoses Onto Lumbar Support Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the function of the lumbar support using the test cable.
