Removing Bowden Cable For Backrest Release

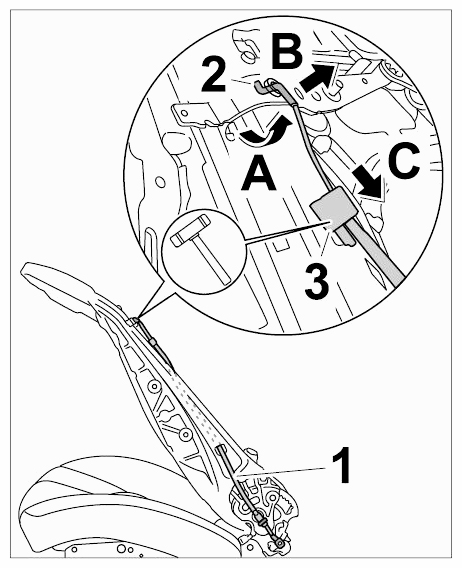

- Release backrest and tilt forwards.
- Swivel pin -2-
of bowden cable -1-
up by 90° -arrow A-
and disengage it -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press locking tab on fixing clip -3-
outwards slightly and press fixing clip -3-
down and out with a plastic hammer -arrow C-
.

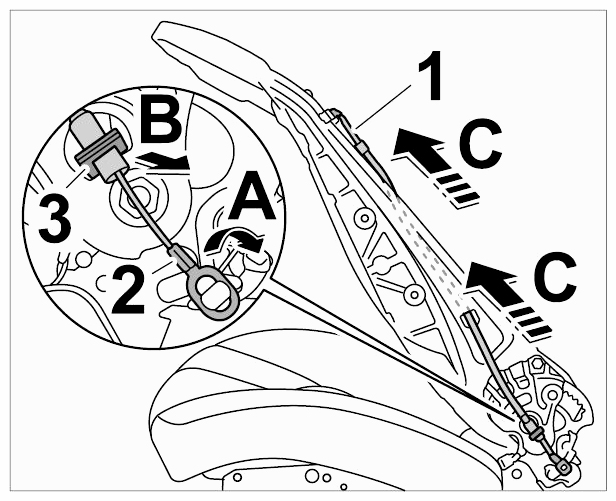

- Swivel eye -2-
of bowden cable -1-
by 90° -arrow A-
and pull it out of the locking lever.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unclip fixing clip -3-
from the backrest frame -1-
(-arrow B-
).
- Pull bowden cable -1-
up out of the backrest frame -arrows C-
.
