Removing Supports For Backrest Side Parts

  1. Unscrew fastening screws -1-  and remove support for right backrest side part -2-  .
    Fig 1: Removing Right Backrest Side Part Support
    G09592158Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  and remove support for left backrest side part -2-  .

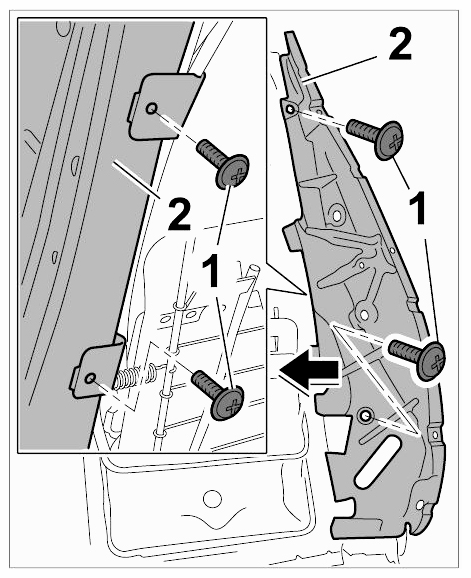

    Fig 2: Removing Left Backrest Side Part Support
    G09592159Courtesy of PORSCHE CARS NORTH AMERICA, INC.
