Installing Backrest Frame
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.
→ Observe specified tightening torques.
→ Carry out a visual inspection of all re-used parts.
Information
Two persons are needed to remove and install the backrest frame.
Information
Always replace the fastening screws on the front seat after customer service and reworking. The micro-self-locking or self-tapping screws must not be treated, greased or loosened and then screwed on again.

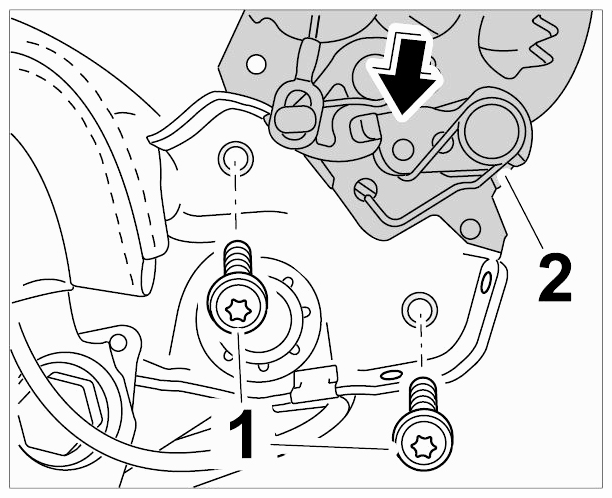

- Fit backrest frame -2- into the seat frame, position it correctly and secure with the fastening screws -1- . Tightening torque → Tightening torque: 34 Nm (25 ftlb.)+/-4 Nm (+/-3 ftlb.)
