Removing Backrest Frame

Information

Two persons are needed to remove and install the backrest frame.

  1. Hold backrest frame -3-  upright.

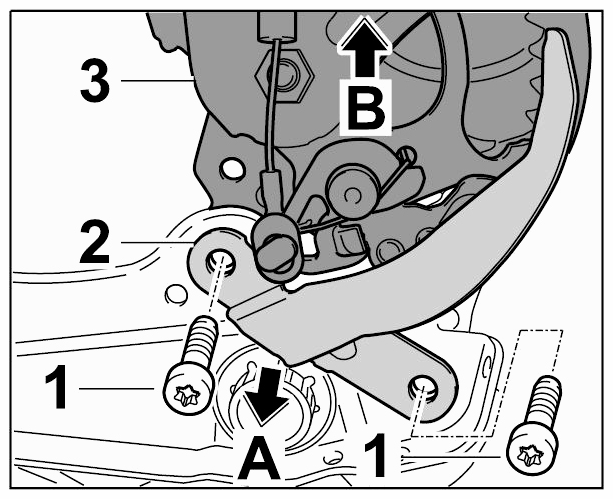

    Fig 1: Removing Backrest Frame
    G09592182Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  at the left and right and remove support panel -2-  (-arrow A-  ).
  3. Lift backrest frame -3-  up out of the seat frame -arrow B-  .
