Removing Hose For Air Cushion Control Valve

  1. Remove tie-wraps -2-  and push hose -1-  for air cushion control valve through in a downward direction -arrow A-  .

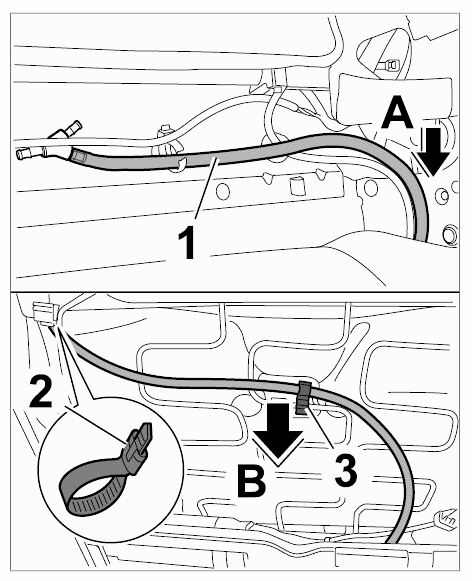

    Fig 1: Removing Air Cushion Control Valve Hose
    G09592150Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the hose -1-  at the holder -3-  (-arrow B-  ).
  3. Pull hose -1-  off the air cushion control valve.

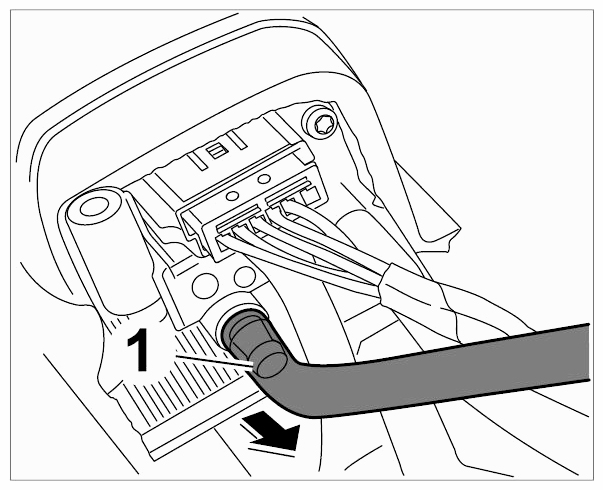

    Fig 2: Pulling Off Air Cushion Control Valve Hose
    G09592151Courtesy of PORSCHE CARS NORTH AMERICA, INC.
