Removing Frame For Seat Surface

  1. Press out retaining pins -1-  at the left and right with a screwdriver.

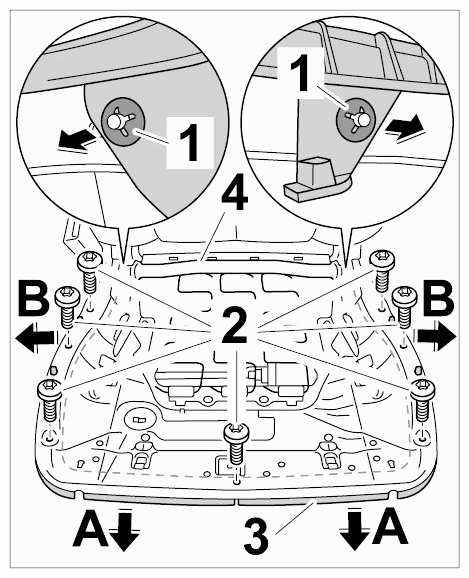

    Fig 1: Removing Seat Surface Frame
    G09592087Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  , pull frame for seat surface -3-  downwards -arrow A-  and remove outwards -arrow B-  from the seat frame -4-  .
