Removing Cover For AWS Sensor On Left And Right

Information

Information

  1. Unscrew fastening screws -1-  and remove cover for AWS sensor -2-  in direction of arrow.

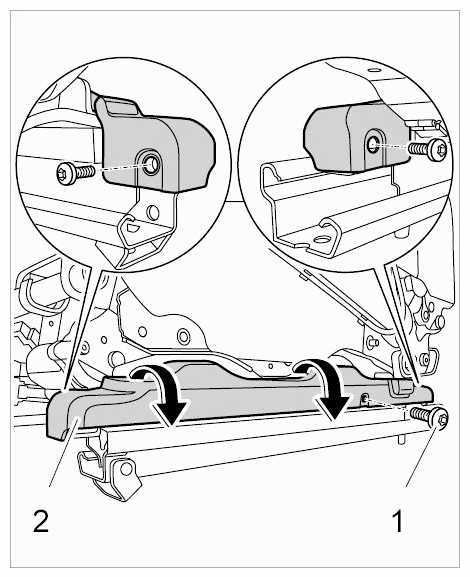

    Fig 1: Removing AWS Sensor Cover
    G09592086Courtesy of PORSCHE CARS NORTH AMERICA, INC.
