Installing Frame For Seat Surface

  1. Position frame for seat surface -3-  on the seat frame -4-  .

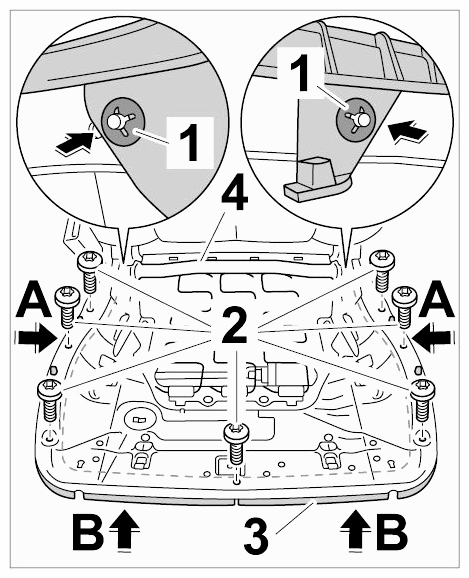

    Fig 1: Installing Seat Surface Frame
    G09592081Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure frame for seat surface -3-  with the fastening screws -2-  .
  3. Press in new locking pins -1-  at the left and right.
